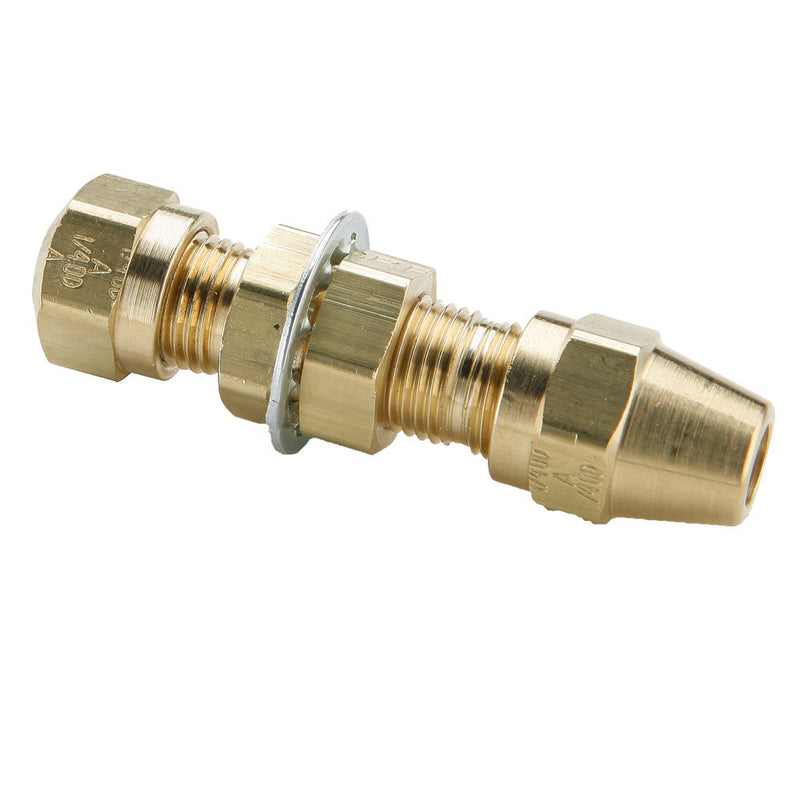

62ANBH-8 by Parker | Air Brake–NTA® Fittings | Bulkhead Union | 1/2" Tube Size x 11/16" Thread | 13/16" Hex B | 1" Hex C | 3.36" Length | Straight | Brass | Pack of 10

Save $275.99

$689.97

$689.97 - $689.97

$689.97

$413.98

$413.98 - $413.98

$413.98

by Parker Hannifin
Air Brake–NTA® Fittings:Bulkhead Union 62ANBH

Package Quantity: 10 Units

Specifications for Variant SKU: 62ANBH-8 Parker \| 10 \|
Brand:	Air Brake–NTA®
Series:	62ANBH Series
Shape (Orientation):	Straight
Material(s):	Brass

Specification:
Product Features:	Brass Body Meets D.O.T. FMVSS571.106 Performance Meets functional Requirements SAE J246 & SAE J1131 Pre-applied Thread Sealant Nickel Plated Versions Available for Bio-diesel
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Air Brakes Air Tanks Air Ride Sliders Tire Inflation Primary & Secondary Air Lines Cab Controls
Pressure Range:	Up to 150 PSI (10.3 bar)
Temperature Range:	-40° to +200° F (-40° to +93.3° C)
Compatible Tubing:	SAE J844 Type A & B nylon tubing


Part Number	Tube Size	Straight Thread	Hex (B)	Hex (C)	L	M	Flow Diameter (D)	Bulkhead Hole Diameter
62ANBH-4	1/4"	7/16"-24	9/16"	9/16"	2.28"	1.38"	.137"	7/16"
62ANBH-6	3/8"	17/32"-24	11/16"	3/4"	2.97"	1.62"	.217"	17/32"
62ANBH-8	1/2"	11/16"-20	13/16"	1"	3.36"	1.88"	.338"	11/16"
