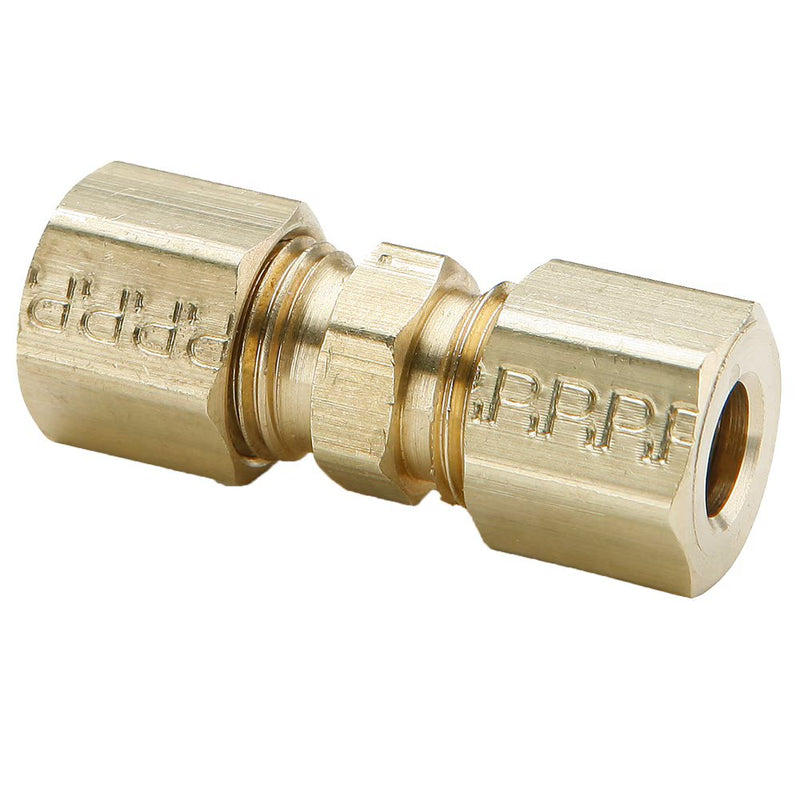

62C-4 by Parker | Compression Fitting | 1/4" Tube Size x 7/16" Thread | 7/16" Hex | 1.33" Length | Straight | Brass | Pack of 50

62C-4 by Parker | Compression Fitting | 1/4" Tube Size x 7/16" Thread | 7/16" Hex | 1.33" Length | Straight | Brass | Pack of 50

Save $116.65 Save $116.65
$291.62
$291.62 - $291.62
$291.62
$174.97
$174.97 - $174.97
$174.97

by Parker Hannifin
Compression Fittings:Union 62C

Package Quantity: 50 Units

Specifications for Variant SKU: 62C-4 Parker | 50 |
Series: 62C Series
Shape (Orientation): Straight
Material(s): Brass
Special Properties: UL Listed
Product Features:
  • Meets functional requirements of SAE J-512
  • UL Listed for flammable liquid
  • Brass or acetal sleeve available
  • No tube preparation
  • Forged and extruded shapes
Markets:
  • Industrial
  • Packaging
  • Pneumatic
  • Printing
Applications:
  • Air lines
  • Lubrication Lines
  • Cooling lines
  • Industry
  • Machinery
  • Compressors
  • Fluid transfer
Specification:
Pressure Range: See Chart Below
Temperature Range: -65° to +250° F (- 53.8° to +121.1° C)
Compatible Tubing:
  • Copper
  • Aluminum
  • Thermoplastic tubing
Part Number Tube Size Straight Thread Hex (C) L M Flow Diameter (D)
62C-2 1/8" 5/16"-24 5/16" 1.05" .64" .094"
62C-3 3/16" 3/8"-24 3/8" 1.21" .72" .125"
62C-4 1/4" 7/16"-24 7/16" 1.33" .79" .188"
62C-5 5/16" 1/2"-24 1/2" 1.39" .85" .250"
62C-6 3/8" 9/16"-24 9/16" 1.52" .97" .312"
62C-7 7/16" 5/8"-24 5/8" 1.70" 1.02" .312"
62C-8 1/2" 11/16"-20 11/16" 1.90" 1.08" .406"
62C-10 5/8" 13/16"-18 13/16" 2.06" 1.23" .500"
62C-12 3/4" 1"-18 1" 2.37" 1.41" 562"
62C-14 7/8" 1-1/8"-18 1-1/8" 2.07" 1.19" .766"
