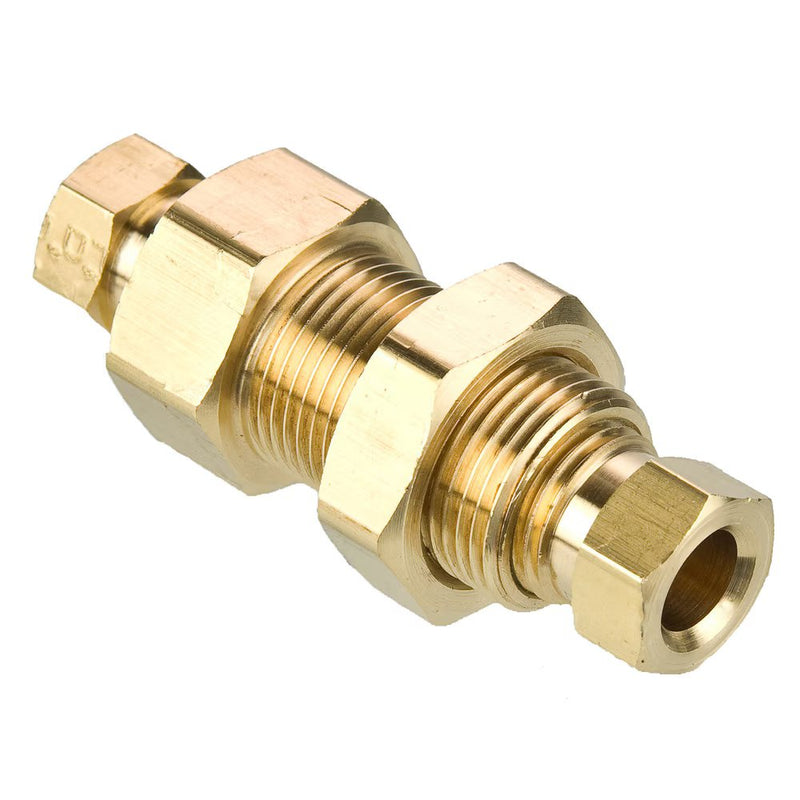

62HDBH-4 by Parker | Hi-Duty Fittings | Bulkhead Union | 1/4" Tube Size | Min. Orifice Size: .187" | .687" Hex | 1.968" Length | Straight | Brass | Pack of 10

Save $142.25

$355.62

$355.62 - $355.62

$355.62

$213.37

$213.37 - $213.37

$213.37

by Parker Hannifin
Hi-Duty Flareless Tube Fittings:Bulkhead Union 62HDBH

Package Quantity: 10 Units

Specifications for Variant SKU: 62HDBH-4 Parker \| 10 \|
Series:	62HDBH Series
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	Fuel Grade


Product Features:	All brass construction Two piece fitting Higher pressure rating Easy assembly
Markets:	Mobile Industrial Compressors Lubrication
Applications:	Lubrication Lines Coolant Lines Oil Lines Engines
Specification:
Pressure Range:	Up to 150 PSI (10.3 bar)
Temperature Range:	-65° to +250° F (-53.8° to +121.1° C)
Pressure Range:	See Chart Below
Compatible Tubing:	Copper Brass Seamless Steel Thermoplastic Tubing


Part Number	Tube Size	Minimum Orifice Size	A	B	C	D	E
62HDBH-2	1/8"	.093"	1.781"	1.156"	.562"	.625"	7/16"-24
62HDBH-4	1/4"	.187"	1.968"	1.156"	.687"	.625"	9/16"-24
