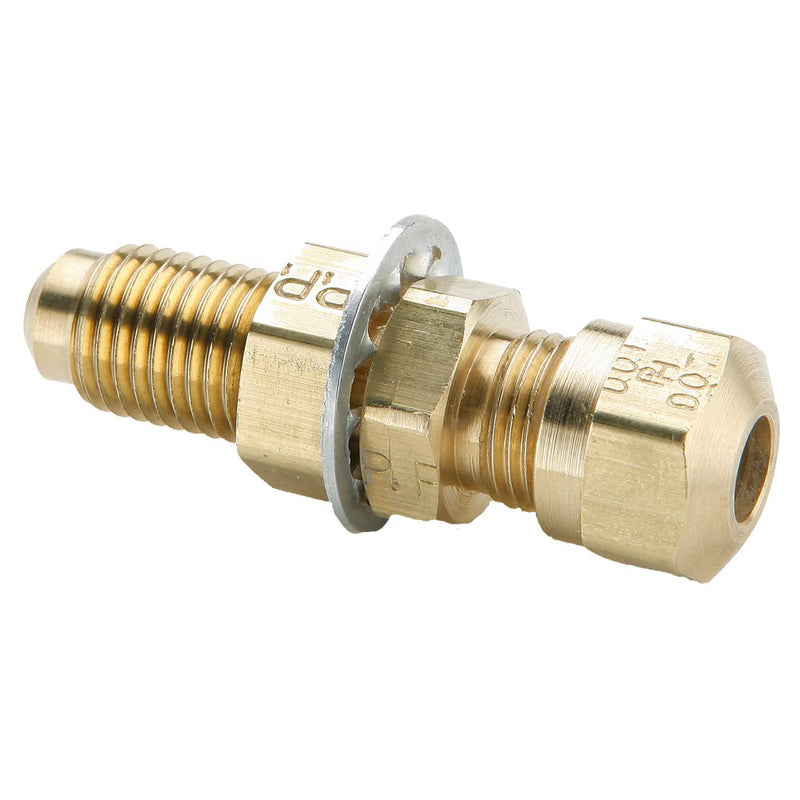

62NFBH-4 by Parker | Air Brake–NTA® Fittings | Bulkhead Union | 1/4" Tube Size x 1/4" Flare Size x 7/16" Thread | 9/16" Hex B | 9/16" Hex C | 1.86" Length | Straight | Brass | Pack of 10

62NFBH-4 by Parker | Air Brake–NTA® Fittings | Bulkhead Union | 1/4" Tube Size x 1/4" Flare Size x 7/16" Thread | 9/16" Hex B | 9/16" Hex C | 1.86" Length | Straight | Brass | Pack of 10

Save $21.03 Save $21.03
$154.90
$154.90 - $154.90
$154.90
$133.87
$133.87 - $133.87
$133.87

by Parker Hannifin
Air Brake–NTA® Fittings:Bulkhead Union 62NFBH

Package Quantity: 10 Units

Specifications for Variant SKU: 62NFBH-4 Parker | 10 |
Brand: Air Brake–NTA®
Series: 62NFBH Series
Shape (Orientation): Straight
Material(s): Brass
Product Features:
  • Brass Body
  • Meets D.O.T. FMVSS571.106 Performance
  • Meets functional Requirements SAE J246 & SAE J1131
  • Pre-applied Thread Sealant
  • Nickel Plated Versions Available for Bio-diesel
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
  • Cab Controls
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -40° to +200° F (-40° to +93.3° C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size A D L L L L L L
62NFBH-4 1/4" 1/4" 7/16"-24 9/16" 9/16" 1.86" 1.53" .137" 7/16"
62NFBH-6 3/8" 3/8" 17/32"-24 3/4" 3/4" 2.24" 1.78" .217" 5/8"
62NFBH-8 1/2" 1/2" 11/16"-20 7/8" 7/8" 2.73" 2.22" .338" 3/4"
62NFBH-10 5/8" 5/8" 13/16"-18 1" 1" 2.68" 2.21" .398" 7/8"
62NFBH-10-8 5/8" 1/2" 13/16"-18 7/8" 7/8" 2.90" 2.40" .398" 3/4"
