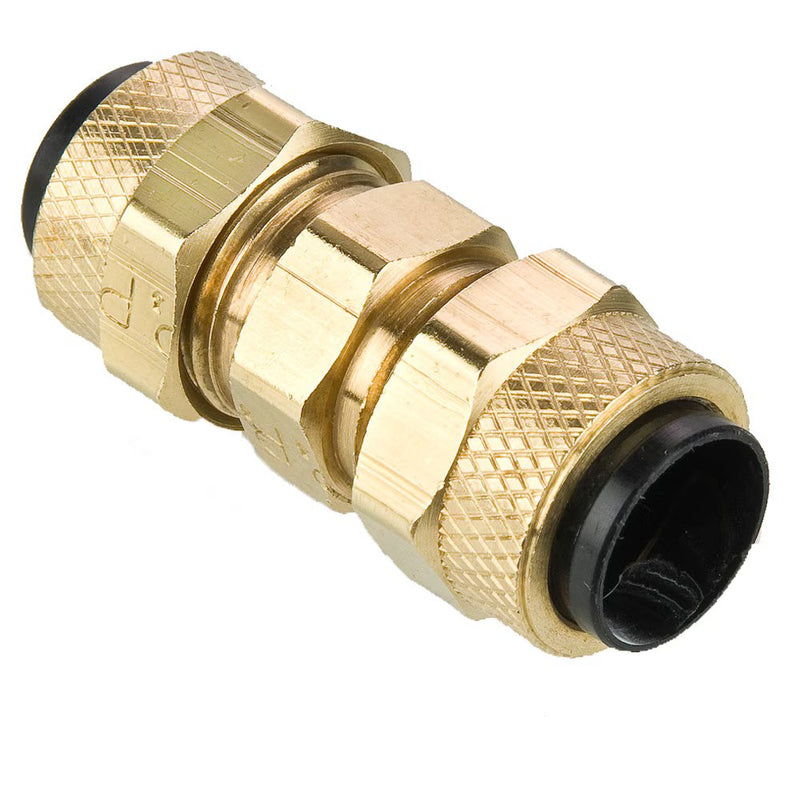

62P-5 by Parker | Poly-Tite Fittings | Union | 5/16" Tube Size x 7/16" Thread | 7/16" Hex | 1.16" Length | Straight | Brass | Pack of 10

62P-5 by Parker | Poly-Tite Fittings | Union | 5/16" Tube Size x 7/16" Thread | 7/16" Hex | 1.16" Length | Straight | Brass | Pack of 10

Save $46.01 Save $46.01
$115.03
$115.03 - $115.03
$115.03
$69.02
$69.02 - $69.02
$69.02

by Parker Hannifin
Poly-Tite Fittings:Union 62P

Package Quantity: 10 Units

Specifications for Variant SKU: 62P-5 Parker | 10 |
Series: 62P Series
Shape (Orientation): Straight
Material(s): Brass, Acetal Copolymer
Special Properties: Silicone Free
Product Features:
  • Self aligning captive sleeve
  • Built-in tube support
  • Knurled nuts for hand tightening
  • Plastic and brass sleeves available
  • Chrome plated and stainless steel side latch couplers available
Markets:
  • Dental
  • Packaging
  • Machine Tools
  • Car Wash
  • Printing
Applications:
  • Pneumatic Systems
  • Water Lines
  • Dental Equipment
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: 0° to +150° F (-17.7° to +65.5° C)
O-Rings: Buna N on chrome plated couplers Fluorocarbon on Stainless Steel couplers
Compatible Tubing:
  • Polyethylene
  • Nylon
  • Polypropylene
  • Vinyl
Part Number Tube Size Straight Thread Hex (C) L M Flow Diameter (D)
62P-4 1/4" 3/8"-24 3/8" 1.17" .96" .125"
62P-5 5/16" 7/16"-24 7/16" 1.16" .96" .144"
62P-6 3/8" 1/2"-24 1/2" 1.23" .99" .204"
62P-8 1/2" 11/16"-20 11/16" 1.47" 1.24" .323"
