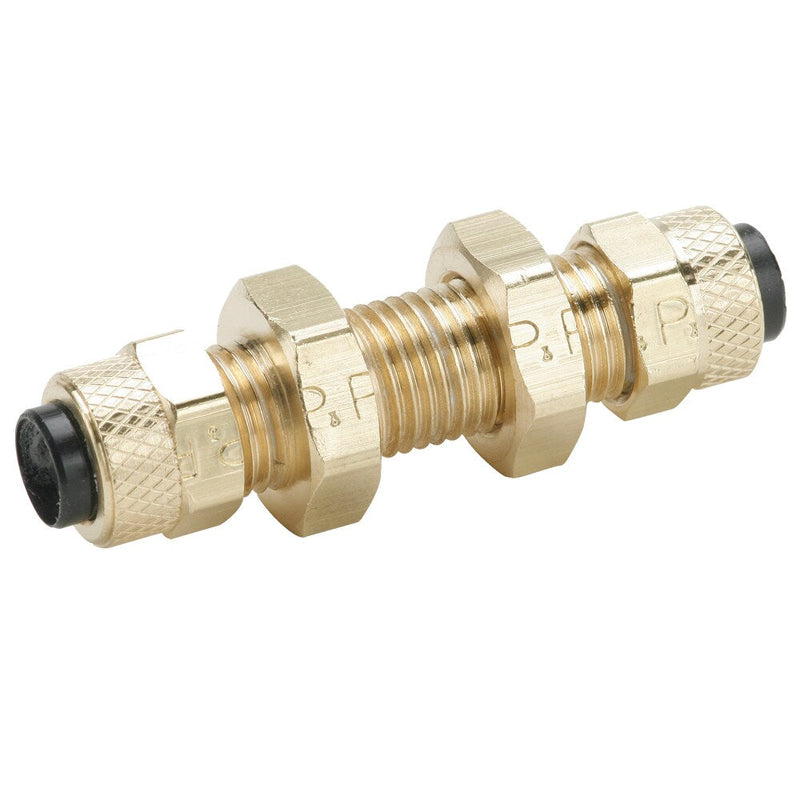

62PBH-8 by Parker | Poly-Tite Fittings | Bulkhead Union | 1/2" Tube Size x 11/16" Thread | 7/8 Hex | 2.28" Length | Straight | Brass | Pack of 10

62PBH-8 by Parker | Poly-Tite Fittings | Bulkhead Union | 1/2" Tube Size x 11/16" Thread | 7/8 Hex | 2.28" Length | Straight | Brass | Pack of 10

Save $29.35 Save $29.35
$322.80
$322.80 - $322.80
$322.80
$293.45
$293.45 - $293.45
$293.45

by Parker Hannifin
Poly-Tite Fittings:Bulkhead Union 62PBH

Package Quantity: 10 Units

Specifications for Variant SKU: 62PBH-8 Parker | 10 |
Series: 62PBH Series
Shape (Orientation): Straight
Material(s): Brass, Acetal Copolymer
Special Properties: Silicone Free
Product Features:
  • Self aligning captive sleeve
  • Built-in tube support
  • Knurled nuts for hand tightening
  • Plastic and brass sleeves available
  • Chrome plated and stainless steel side latch couplers available
Markets:
  • Dental
  • Packaging
  • Machine Tools
  • Car Wash
  • Printing
Applications:
  • Pneumatic Systems
  • Water Lines
  • Dental Equipment
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: 0° to +150° F (-17.7° to +65.5° C)
O-Rings: Buna N on chrome plated couplers Fluorocarbon on Stainless Steel couplers
Compatible Tubing:
  • Polyethylene
  • Nylon
  • Polypropylene
  • Vinyl
Part Number Tube Size Straight Thread Hex (C) Max. (P) L M Bulkhead Hole Diameter Flow Diameter (D)
62PBH-4 1/4" 3/8"-24 9/16" .38" 1.75" 1.53" 3/8" .125"
62PBH-5 5/16" 7/16"-24 5/8" .38" 1.71" 1.52" 7/16" .144"
62PBH-6 3/8" 1/2"-24 11/16" .47" 1.89" 1.65" 1/2" .204"
62PBH-8 1/2" 11/16"-20 7/8" .63" 2.28" 2.05" 11/16" .323"
