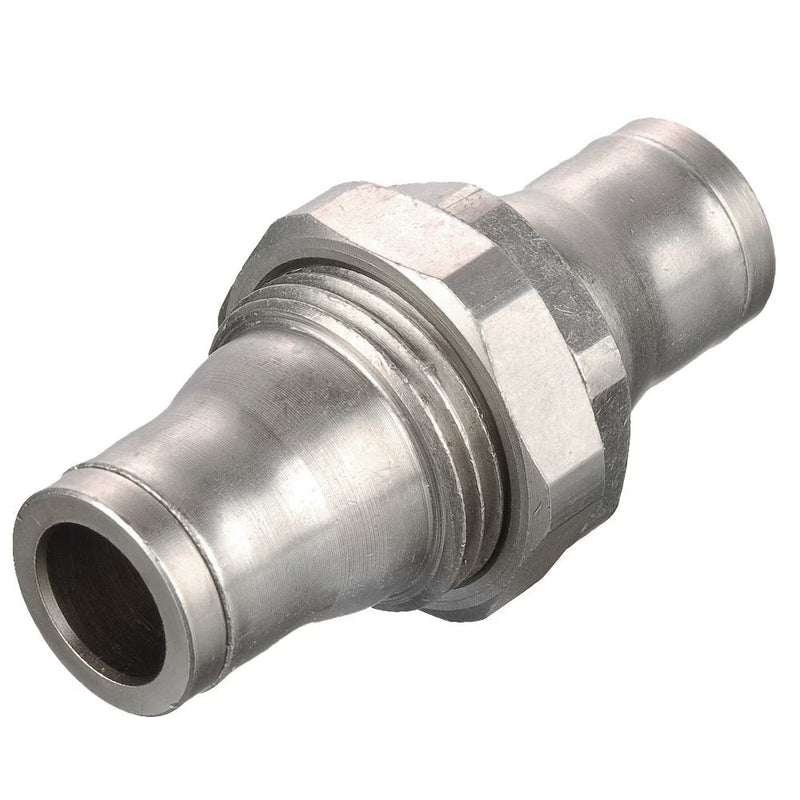

62PLMBH-12M by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Bulkhead | 12 mm Tube Size | 26.00 mm Height | 26.00 mm Width | 50.00 mm Length | Straight | Electroless Nickel-Plated Brass | Pack of 5

Save $17.72

$124.05

$124.05 - $124.05

$124.05

$106.33

$106.33 - $106.33

$106.33

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:62PLMBH Bulkhead Connector Metric Tube to Tube

Package Quantity: 5 Units

Specifications for Variant SKU: 62PLMBH-12M Parker \| 5 \|
Series:	62PLMBH Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Special Properties:	Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free

Product Features:	High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body FKM seal Chemical, corrosion, and abrasion resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Industrial Chemical Life Science Semi-conductors Automation Food Processing
Compatible Media:	Food Fluids Harsh Detergents Cleaning In Cold/Hot Water Steam Oils Compressed Air Inert Gases
Pressure Range:	Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLM
Vacuum Rating:	28" Hg
Temperature Range:	-13° to +302° F (-25° to +150° C)
Compatible Tubing:	Polyethylene Polyurethane 95 Durometer Shore A* Nylon FEP


Part Number	Tube Size	F1	F2	K	L1	L2	T
62PLMBH-4M	4 mm	13 mm	14 mm	14.00 mm	14.00 mm	20.00 mm	12.50 mm
62PLMBH-6M	6 mm	16 mm	17 mm	17.50 mm	17.00 mm	22.00 mm	15.00 mm
62PLMBH-8M	8 mm	18 mm	19 mm	19.50 mm	18.50 mm	23.50 mm	17.00 mm
62PLMBH-10M	10 mm	22 mm	27 mm	24.00 mm	21.50 mm	26.50 mm	21.00 mm
62PLMBH-12M	12 mm	24 mm	24 mm	26.00 mm	23.00 mm	27.00 mm	23.50 mm
62PLMBH-14M	14 mm	27 mm	27 mm	29.50 mm	25.50 mm	29.50 mm	25.00 mm
