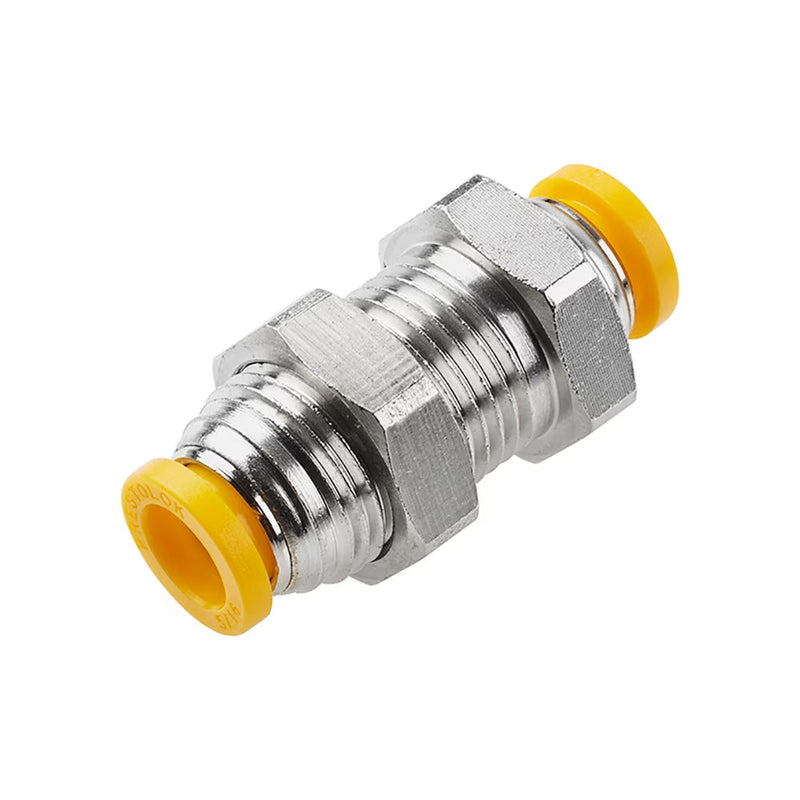

62PLPBH-10M by Parker | Prestolok PLP Push-to-Connect Fittings | Bulkhead Unions | 10mm Bulkhead Union Tube Size | 19mm Bulkhead Hole Dia. | 7/8" Hex | 40.91mm Length | 7.925mm Dia. | Straight | Nickel-Plated Brass | Pack of 10

62PLPBH-10M by Parker | Prestolok PLP Push-to-Connect Fittings | Bulkhead Unions | 10mm Bulkhead Union Tube Size | 19mm Bulkhead Hole Dia. | 7/8" Hex | 40.91mm Length | 7.925mm Dia. | Straight | Nickel-Plated Brass | Pack of 10

Save $21.37 Save $21.37
$145.90
$145.90 - $145.90
$145.90
$124.53
$124.53 - $124.53
$124.53

by Parker Hannifin
Push-to-Connect Fittings:62PLPBH Bulkhead Union – Metric

Package Quantity: 10 Units

Specifications for Variant SKU: 62PLPBH-10M Parker | 10 |
Series: 62PLPBH Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass, Stainless Steel, PVDF
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Corrosion Resistance, Flame Resistant Release Button
Product Features:
  • Stainless steel grab ring
  • Nickel-plated brass body
  • Nitrile seal
  • Flame resistant release button
  • Corrosion resistance
  • Inch and metric tube connections
  • NPT, BSPP, BSPT, and metric threads
  • Meets UL94 V-0 Flame Resistance Standard
Markets:
  • Industrial
  • Automotive
  • Climate Control
  • Welding
  • Robotic Welding
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range: 0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • 95FR Microweld
  • Polyethylene
  • Polypropylene
  • Semi Rigid Nylon
  • Rigid Nylon
  • Polyurethane 95 Durometer Shore A
62PLPBH_Metric_Series_Table_Photo
Part Number Tube Size (mm) Bulkhead Hole Diameter (B) Hex (C) Max. (P) L D
62PLPBH-4M 4 mm 11 mm 9/16" 9.68 mm 35.49 mm 3.175 mm
62PLPBH-6M 6 mm 14 mm 11/16" 7.57 mm 34.07 mm 4.775 mm
62PLPBH-8M 8 mm 16 mm 3/4" 14.67 mm 41.79 mm 6.350 mm
62PLPBH-10M 10 mm 19 mm 7/8" 11.66 mm 40.91 mm 7.925 mm
62PLPBH-12M 12 mm 22 mm 1" 14.99 mm 50.94 mm 9.525 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
