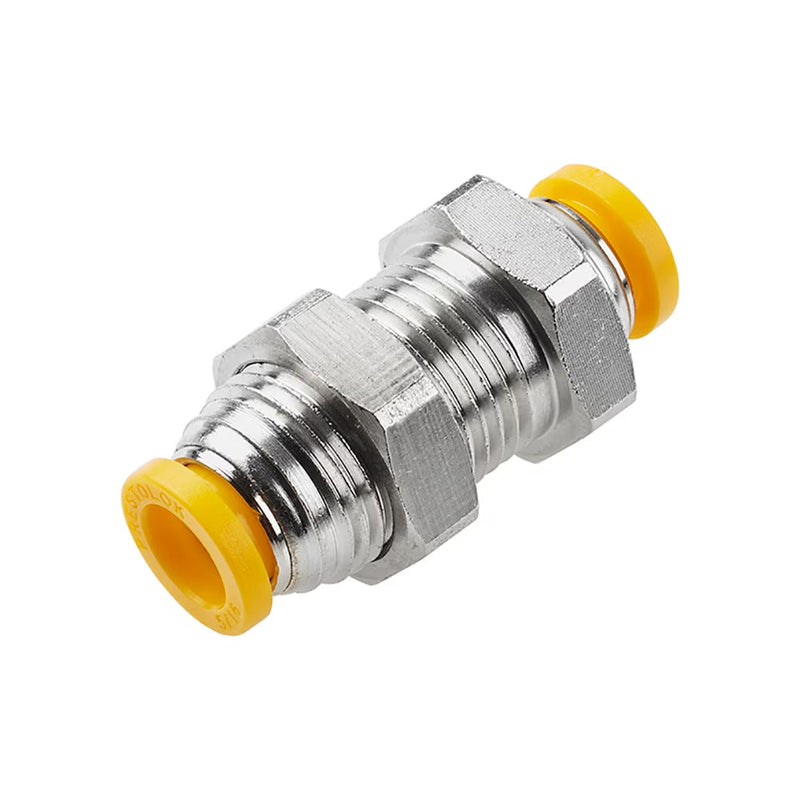

62PLPBH-4M by Parker | Prestolok PLP Push-to-Connect Fittings | Bulkhead Unions | 4mm Bulkhead Union Tube Size | 11mm Bulkhead Hole Dia. | 9/16" Hex | 35.49mm Length | 3.175mm Dia. | Straight | Nickel-Plated Brass | Pack of 10

62PLPBH-4M by Parker | Prestolok PLP Push-to-Connect Fittings | Bulkhead Unions | 4mm Bulkhead Union Tube Size | 11mm Bulkhead Hole Dia. | 9/16" Hex | 35.49mm Length | 3.175mm Dia. | Straight | Nickel-Plated Brass | Pack of 10

Save $15.43 Save $15.43
$105.70
$105.70 - $105.70
$105.70
$90.27
$90.27 - $90.27
$90.27

by Parker Hannifin
Push-to-Connect Fittings:62PLPBH Bulkhead Union – Metric

Package Quantity: 10 Units

Specifications for Variant SKU: 62PLPBH-4M Parker | 10 |
Series: 62PLPBH Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass, Stainless Steel, PVDF
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Corrosion Resistance, Flame Resistant Release Button
Product Features:
  • Stainless steel grab ring
  • Nickel-plated brass body
  • Nitrile seal
  • Flame resistant release button
  • Corrosion resistance
  • Inch and metric tube connections
  • NPT, BSPP, BSPT, and metric threads
  • Meets UL94 V-0 Flame Resistance Standard
Markets:
  • Industrial
  • Automotive
  • Climate Control
  • Welding
  • Robotic Welding
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range: 0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • 95FR Microweld
  • Polyethylene
  • Polypropylene
  • Semi Rigid Nylon
  • Rigid Nylon
  • Polyurethane 95 Durometer Shore A
62PLPBH_Metric_Series_Table_Photo
Part Number Tube Size (mm) Bulkhead Hole Diameter (B) Hex (C) Max. (P) L D
62PLPBH-4M 4 mm 11 mm 9/16" 9.68 mm 35.49 mm 3.175 mm
62PLPBH-6M 6 mm 14 mm 11/16" 7.57 mm 34.07 mm 4.775 mm
62PLPBH-8M 8 mm 16 mm 3/4" 14.67 mm 41.79 mm 6.350 mm
62PLPBH-10M 10 mm 19 mm 7/8" 11.66 mm 40.91 mm 7.925 mm
62PLPBH-12M 12 mm 22 mm 1" 14.99 mm 50.94 mm 9.525 mm
