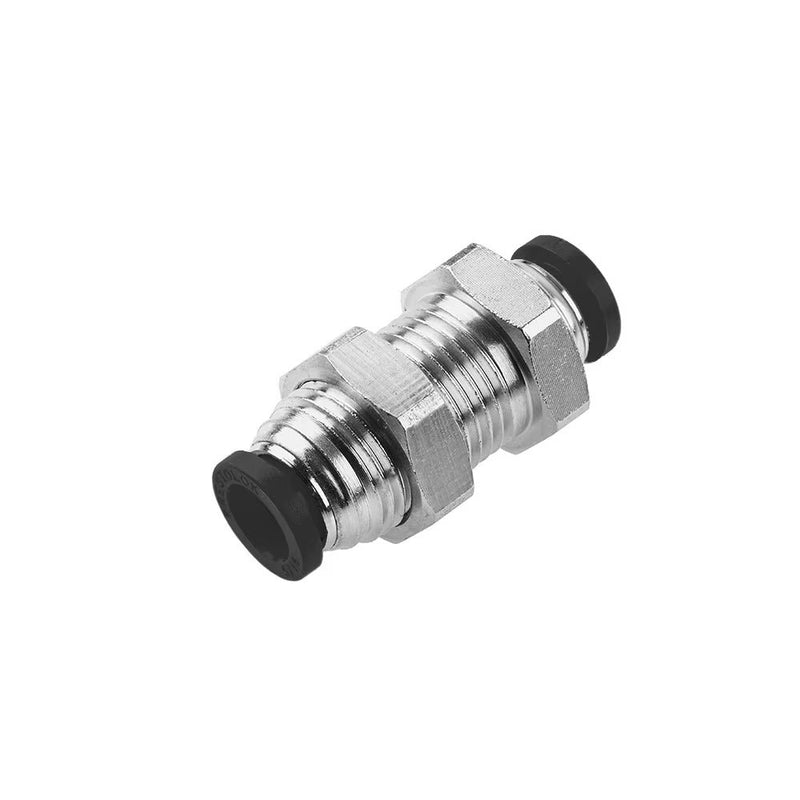

62PLPBH-5/32 by Parker | Prestolok PLP Push-to-Connect Fittings | Bulkhead Unions | 5/32" Bulkhead Union Tube Size | 7/16" Bulkhead Hole Dia. | 9/16" Hex | 1.41" Length | .125" Dia. | Straight | Nickel-Plated Brass | Pack of 10

62PLPBH-5/32 by Parker | Prestolok PLP Push-to-Connect Fittings | Bulkhead Unions | 5/32" Bulkhead Union Tube Size | 7/16" Bulkhead Hole Dia. | 9/16" Hex | 1.41" Length | .125" Dia. | Straight | Nickel-Plated Brass | Pack of 10

Save $15.40 Save $15.40
$105.53
$105.53 - $105.53
$105.53
$90.13
$90.13 - $90.13
$90.13

by Parker Hannifin
Push-to-Connect Fittings:62PLPBH Bulkhead Union – Inch

Package Quantity: 10 Units

Specifications for Variant SKU: 62PLPBH-5/32 Parker | 10 |
Series: 62PLPBH Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass, Stainless Steel, PVDF
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Corrosion Resistance, Flame Resistant Release Button
Product Features:
  • Stainless steel grab ring
  • Nickel-plated brass body
  • Nitrile seal
  • Flame resistant release button
  • Corrosion resistance
  • Inch and metric tube connections
  • NPT, BSPP, BSPT, and metric threads
  • Meets UL94 V-0 Flame Resistance Standard
Markets:
  • Industrial
  • Automotive
  • Climate Control
  • Welding
  • Robotic Welding
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range: 0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • 95FR Microweld
  • Polyethylene
  • Polypropylene
  • Semi Rigid Nylon
  • Rigid Nylon
  • Polyurethane 95 Durometer Shore A
62PLPBH_Inch_Series_Table_Photo
Part Number Tube Size (In) Bulkhead Hole Diameter Hex (C) Max. (P) Length (L) D
62PLPBH-2 1/8" 7/16" 9/16" .39" 1.40 .094
62PLPBH-5/32 5/32" 7/16" 9/16" .39" 1.41 .125
62PLPBH-4 1/4" 7/16" 9/16" .29" 1.43 .188
62PLPBH-5 5/16" 5/8" 3/4" .60" 1.65 .250
62PLPBH-6 3/8" 3/4" 7/8" .54" 1.66 .312
62PLPBH-8 1/2" 7/8" 1" .66" 2.04 .375
