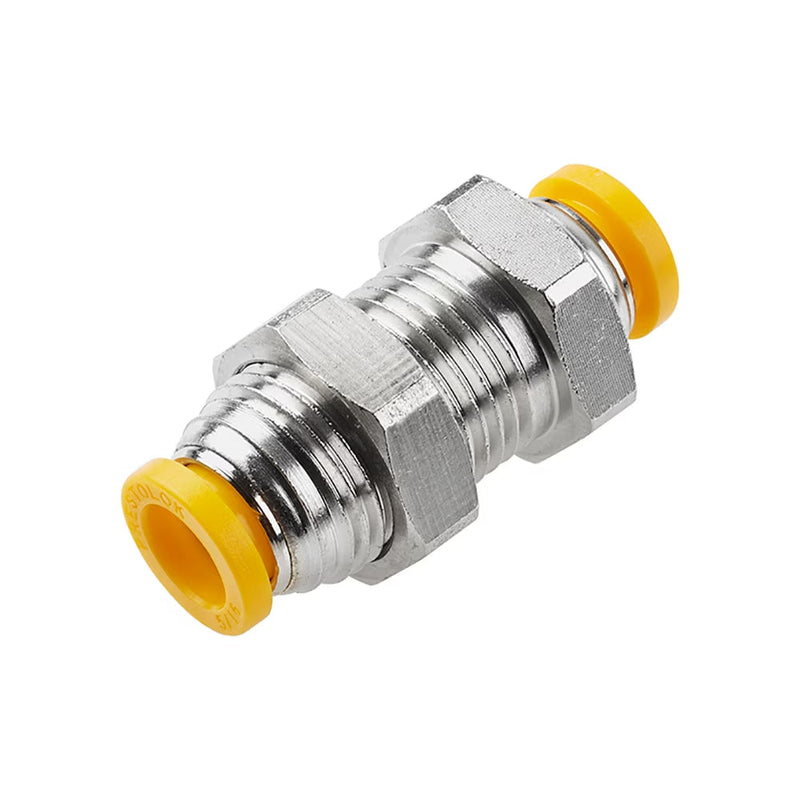

62PLPBH-8M by Parker | Prestolok PLP Push-to-Connect Fittings | Bulkhead Unions | 8mm Bulkhead Union Tube Size | 16mm Bulkhead Hole Dia. | 3/4" Hex | 41.79mm Length | 6.350mm Dia. | Straight | Nickel-Plated Brass | Pack of 10

Save $86.10

$215.25

$215.25 - $215.25

$215.25

$129.15

$129.15 - $129.15

$129.15

by Parker Hannifin
Push-to-Connect Fittings:62PLPBH Bulkhead Union – Metric

Package Quantity: 10 Units

Specifications for Variant SKU: 62PLPBH-8M Parker \| 10 \|
Series:	62PLPBH Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Stainless Steel, PVDF
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance, Flame Resistant Release Button

Product Features:	Stainless steel grab ring Nickel-plated brass body Nitrile seal Flame resistant release button Corrosion resistance Inch and metric tube connections NPT, BSPP, BSPT, and metric threads Meets UL94 V-0 Flame Resistance Standard
Markets:	Industrial Automotive Climate Control Welding Robotic Welding
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range:	0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating:	28" Hg
Compatible Tubing:	95FR Microweld Polyethylene Polypropylene Semi Rigid Nylon Rigid Nylon Polyurethane 95 Durometer Shore A


Part Number	Tube Size (mm)	Bulkhead Hole Diameter (B)	Hex (C)	Max. (P)	L	D
62PLPBH-4M	4 mm	11 mm	9/16"	9.68 mm	35.49 mm	3.175 mm
62PLPBH-6M	6 mm	14 mm	11/16"	7.57 mm	34.07 mm	4.775 mm
62PLPBH-8M	8 mm	16 mm	3/4"	14.67 mm	41.79 mm	6.350 mm
62PLPBH-10M	10 mm	19 mm	7/8"	11.66 mm	40.91 mm	7.925 mm
62PLPBH-12M	12 mm	22 mm	1"	14.99 mm	50.94 mm	9.525 mm
