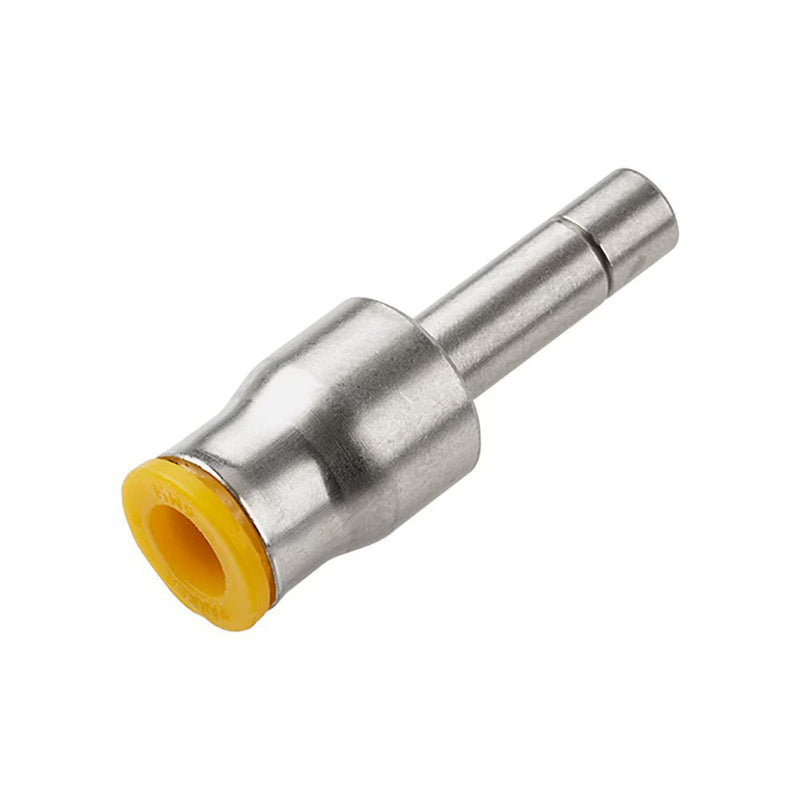

62PLPSP-12M-10M by Parker | Prestolok PLP Push-to-Connect Fitting | Tube Expander | 12mm Tube Size x 10mm Tube Size | 48.5mm Length | 24mm Length 1 | Straight | Nickel-Plated Brass | Pack of 10

62PLPSP-12M-10M by Parker | Prestolok PLP Push-to-Connect Fitting | Tube Expander | 12mm Tube Size x 10mm Tube Size | 48.5mm Length | 24mm Length 1 | Straight | Nickel-Plated Brass | Pack of 10

Save $13.23 Save $13.23
$78.03
$78.03 - $78.03
$78.03
$64.80
$64.80 - $64.80
$64.80

by Parker Hannifin
Push-to-Connect Fittings:62PLPSP – Tube Expander – Metric

Package Quantity: 10 Units

Specifications for Variant SKU: 62PLPSP-12M-10M Parker | 10 |
Series: 62PLPSP Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass, Stainless Steel, PVDF
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Corrosion Resistance, Flame Resistant Release Button
Product Features:
  • Stainless steel grab ring
  • Nickel-plated brass body
  • Nitrile seal
  • Flame resistant release button
  • Corrosion resistance
  • Inch and metric tube connections
  • NPT, BSPP, BSPT, and metric threads
  • Meets UL94 V-0 Flame Resistance Standard
Markets:
  • Industrial
  • Automotive
  • Climate Control
  • Welding
  • Robotic Welding
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range: 0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • 95FR Microweld
  • Polyethylene
  • Polypropylene
  • Semi Rigid Nylon
  • Rigid Nylon
  • Polyurethane 95 Durometer Shore A
Part Number Tube Size 1 Tube Size 2 Length (L) Length (L1)
62PLPSP-10M-8M 10 mm 8 mm 42.7 mm 21.2 mm
62PLPSP-12M-10M 12 mm 10 mm 48.5 mm 24.0 mm
62PLPSP-6M-4M 6 mm 4 mm 33.0 mm 21.0 mm
62PLPSP-8M-6M 8 mm 6 mm 39.6 mm 26.1 mm
