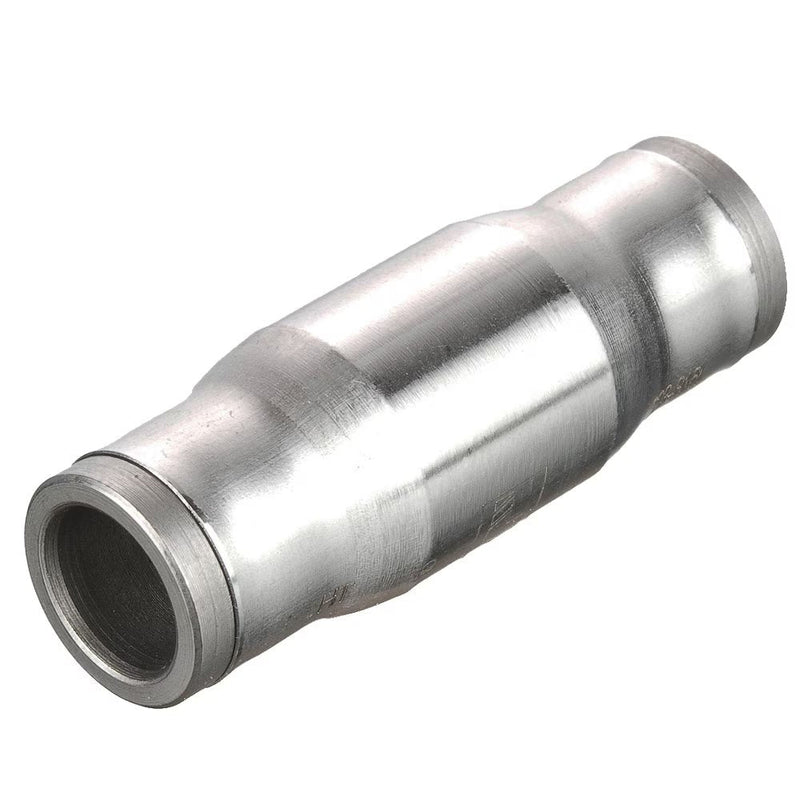

62PLS-6 by Parker | Prestolok PLS Push-to-Connect Fittings | Tube to Tube Fittings | 3/8" Tube Size | 1.81" Length | .69" Height | .69" Width | Straight | Stainless Steel | Pack of 5

62PLS-6 by Parker | Prestolok PLS Push-to-Connect Fittings | Tube to Tube Fittings | 3/8" Tube Size | 1.81" Length | .69" Height | .69" Width | Straight | Stainless Steel | Pack of 5

Save $285.73 Save $285.73
$714.33
$714.33 - $714.33
$714.33
$428.60
$428.60 - $428.60
$428.60

by Parker Hannifin
Prestolok PLS Stainless Steel Push-to-Connect Fittings:62PLS Union - Inch Tube

Package Quantity: 5 Units

Specifications for Variant SKU: 62PLS-6 Parker | 5 |
Series: 62PLS Series
Shape (Orientation): Straight
Material(s): Stainless Steel
Special Properties: Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free
Product Features:
  • Stainless steel 316L collet
  • Stainless steel 316L body
  • FKM seal
  • Stainless steel 316L backup washer
  • Chemical, corrosion, and abrasion resistance
  • Hygienic design reduces retention zones for
  • Easy cleaning
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Petrochemical
  • Life Science
  • Pulp and Paper
  • Food Processing
  • Wash Down
Compatible Media:
  • Food Fluids
  • Chemicals
  • Cleaning Agents
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLS
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyethylene
  • Polyurethane 95 Durometer Shore A
  • Stainless Steel (grooved)
  • Copper (grooved)
  • FEP
Part Number Tube Size G H
62PLS-3 3/16" .39" 1.18"
62PLS-4 1/4" .47" 1.38"
62PLS-6 3/8" .69" 1.81"
62PLS-8 1/2" .79" 1.89"
