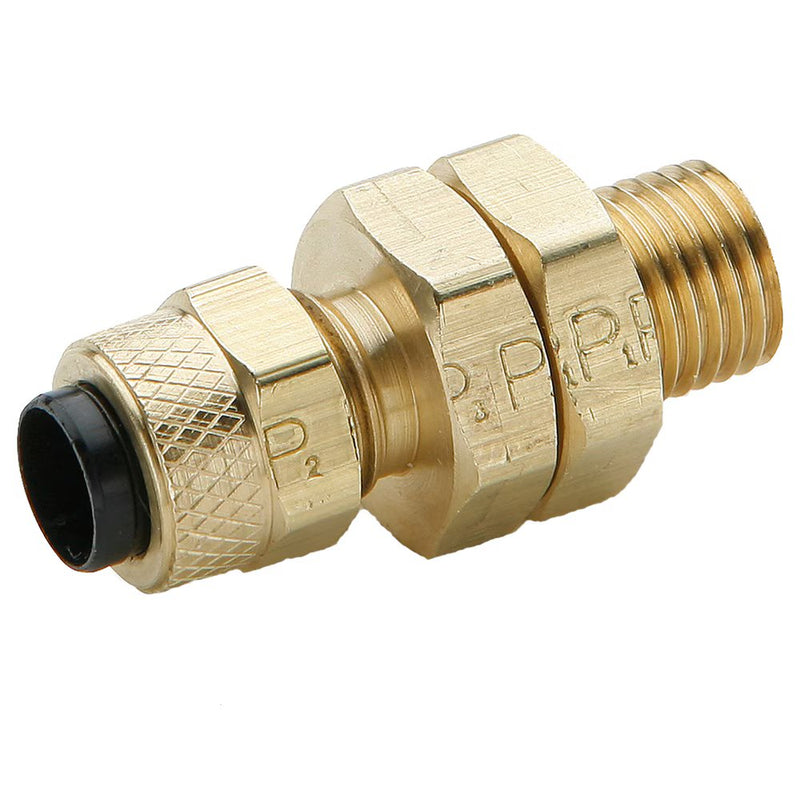

62PTBH-4 by Parker | Poly-Tite Fittings | Bulkhead Union | 1/4" Tube Size x 3/8" Thread | 9/16" Hex | 1.19" Length | Straight | Brass | Pack of 25

Save $147.35

$368.38

$368.38 - $368.38

$368.38

$221.03

$221.03 - $221.03

$221.03

by Parker Hannifin
Poly-Tite Fittings:Bulkhead Union 62PTBH

Package Quantity: 25 Units

Specifications for Variant SKU: 62PTBH-4 Parker \| 25 \|
Series:	62PTBH Series
Shape (Orientation):	Straight
Material(s):	Brass, Acetal Copolymer
Special Properties:	Silicone Free

Specification:
Product Features:	Self aligning captive sleeve Built-in tube support Knurled nuts for hand tightening Plastic and brass sleeves available Chrome plated and stainless steel side latch couplers available
Markets:	Dental Packaging Machine Tools Car Wash Printing
Applications:	Pneumatic Systems Water Lines Dental Equipment
Pressure Range:	Up to 150 PSI (10.3 bar)
Temperature Range:	0° to +150° F (-17.7° to +65.5° C)
O-Rings:	Buna N on chrome plated couplers Fluorocarbon on Stainless Steel couplers
Compatible Tubing:	Polyethylene Nylon Polypropylene Vinyl


Part Number	Tube Size	Straight Thread	Hex (C)	Max (P)	L	M	Bulkhead Hole Diameter	Flow Diameter (D)
62PTBH-4	1/4"	3/8"-24	9/16"	.31"	1.19"	.93"	3/8"	.260"
62PTBH-5	5/16"	7/16"-24	5/8"	.31"	1.19"	.93"	7/16"	.323"
62PTBH-6	3/8"	1/2"-24	11/16"	.34"	1.26"	.99"	1/2"	.387"
