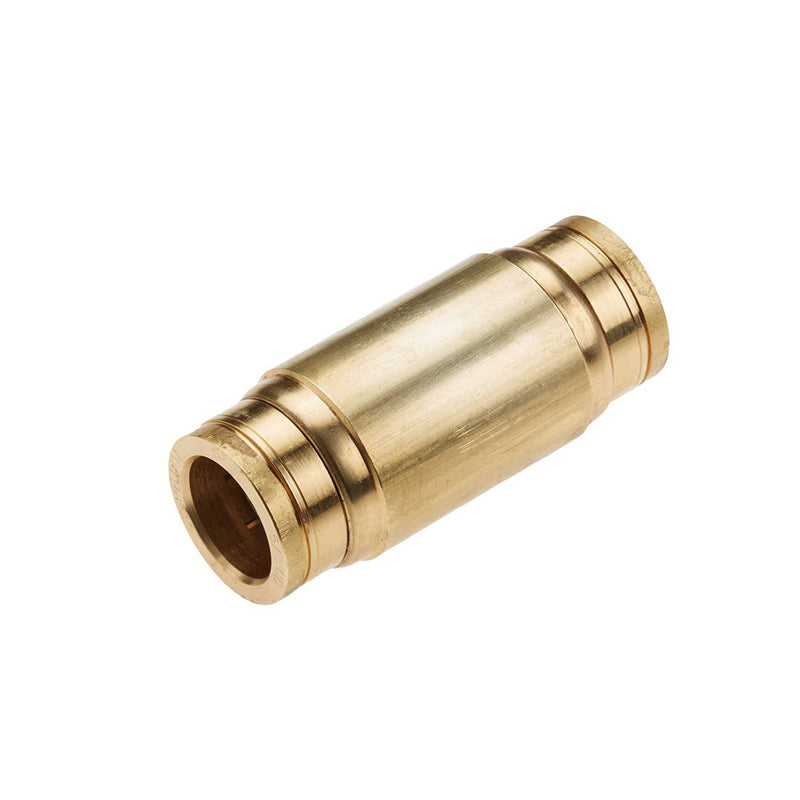

62PTC-8 by Parker | Tube to Tube Fitting | Union | 1/2" Push-to-Connect Reducer | 1.92" Length | Straight | Brass | Pack of 5

Save $44.98

$112.45

$112.45 - $112.45

$112.45

$67.47

$67.47 - $67.47

$67.47

by Parker Hannifin
PTC Brass Fittings:Union 62PTC

Package Quantity: 5 Units

Specifications for Variant SKU: 62PTC-8 Parker \| 5 \|
Series:	62PTC Series
Shape (Orientation):	Straight
Material(s):	Brass, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Specification:
Product Features:	Brass Collet Buna N O-ring Stainless Steel Tube Support Meets D.O.T. FMVSS571.106 Meets SAE J2494-3 Meets SAE J2494 & SAE J2494-3
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Air Brakes Air Tanks Air Ride Sliders Tire Inflation Primary & Secondary Air Lines
Pressure Range:	Up to 250 PSI (17.2 bar)
Temperature Range:	-50° to +230° F (-45.5° to +100° C)
Temperature Range (3/16" & 5/32 only):	-40 to +200F (-40 to +93.3C)
Compatible Tubing:	SAE J844 Type A & B nylon tubing


Part Number	Tube Size 1	Tube Size 2	L	OD
62PTC-5/32*	5/32"	5/32"	1.35"	.41"
62PTC-3*	3/16"	3/16"	1.36"	.44"
62PTC-4	1/4"	1/4"	1.37"	1/2"
62PTC-6	3/8"	3/8"	1.77"	3/4"
62PTC-6-4	3/8"	1/4"	1.57"	3/4"
62PTC-4-5/32	1/4"	5/32"	N/A	N/A
62PTC-8	1/2"	1/2"	1.92"	7/8"
62PTC-10	5/8"	5/8"	2.32"	1"

*5/32 and 3/16 with black button
