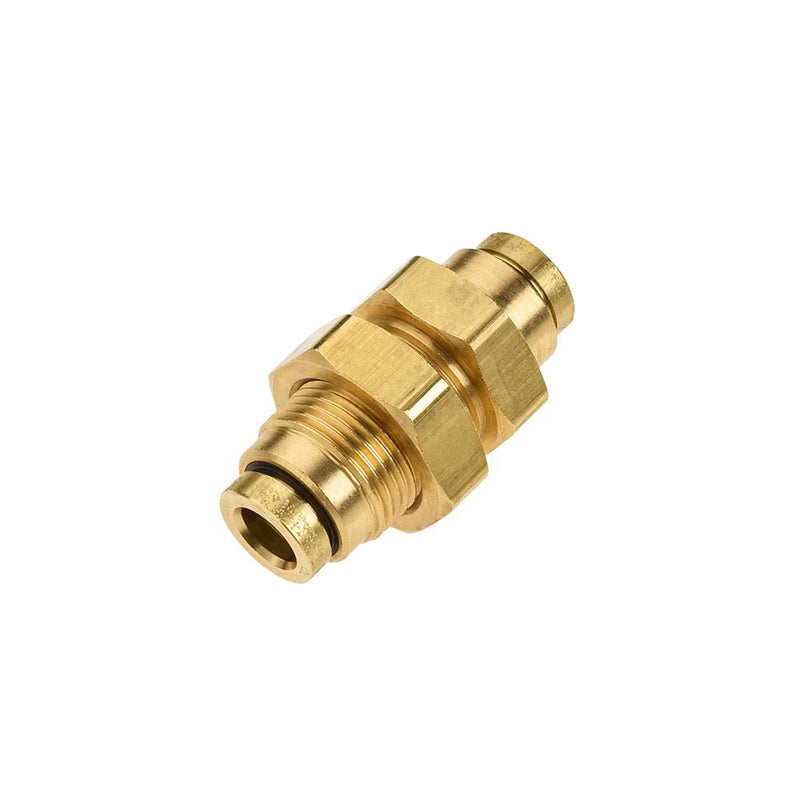

62PTCBH-4 by Parker | Bulkhead Union | 1/4" Push-to-Connect | 11/16" Hex A | 3/4" Hex B | 1.69" Length | Straight | Brass | Pack of 10

Save $61.07

$152.67

$152.67 - $152.67

$152.67

$91.60

$91.60 - $91.60

$91.60

by Parker Hannifin
PTC Brass Fittings:Bulkhead Union 62PTCBH

Package Quantity: 10 Units

Specifications for Variant SKU: 62PTCBH-4 Parker \| 10 \|
Series:	62PTCBH Series
Shape (Orientation):	Straight
Material(s):	Brass, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Specification:
Product Features:	Brass Collet Buna N O-ring Stainless Steel Tube Support Meets D.O.T. FMVSS571.106 Meets SAE J2494-3 Meets SAE J2494 & SAE J2494-3
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Air Brakes Air Tanks Air Ride Sliders Tire Inflation Primary & Secondary Air Lines
Pressure Range:	Up to 250 PSI (17.2 bar)
Temperature Range:	-50° to +230° F (-45.5° to +100° C)
Temperature Range (3/16" & 5/32 only):	-40 to +200F (-40 to +93.3C)
Compatible Tubing:	SAE J844 Type A & B nylon tubing


Part Number	Tube Size	OD	L	Max (P)	Hex (A)	Hex (B)	Diameter (A)
62PTCBH-4*	1/4"	.56"	1.69"	.25"	11/16"	3/4"	9/16"
62PTCBH-6	3/8"	.88"	1.93"	.44"	1-1/16"	1-1/16"	7/8"
62PTCBH-8	1/2"	1.00"	2.02"	.58"	1-1/4"	1-1/4"	1"
62PTCBH-10	5/8"	1.12"	2.40"	.81"	1-1/4"	1-3/8"	1-1/8"

*Sleeve color may vary
