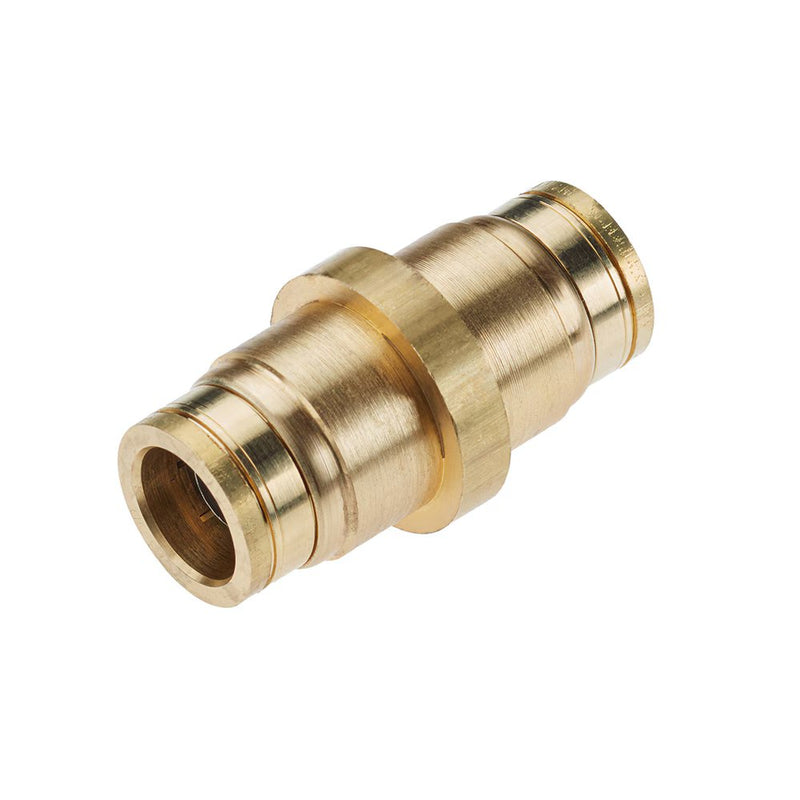

62PTCBHR-8 by Parker | Bulkhead Union | 1/2" Retaining Ring Push-to-Connect | 2.15" Length | Straight | Brass | Pack of 5

Save $7.16

$87.49

$87.49 - $87.49

$87.49

$80.33

$80.33 - $80.33

$80.33

by Parker Hannifin
PTC Brass Fittings:Retaining Ring Bulkhead 62PTCBHR

Package Quantity: 5 Units

Quantity

Specifications for Variant SKU: 62PTCBHR-8 Parker \| 5 \|
Series:	62PTCBHR Series
Shape (Orientation):	Straight
Material(s):	Brass, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Specification:
Product Features:	Brass Collet Buna N O-ring Stainless Steel Tube Support Meets D.O.T. FMVSS571.106 Meets SAE J2494-3 Meets SAE J2494 & SAE J2494-3
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Air Brakes Air Tanks Air Ride Sliders Tire Inflation Primary & Secondary Air Lines
Pressure Range:	Up to 250 PSI (17.2 bar)
Temperature Range:	-50° to +230° F (-45.5° to +100° C)
Temperature Range (3/16" & 5/32 only):	-40 to +200F (-40 to +93.3C)
Compatible Tubing:	SAE J844 Type A & B nylon tubing


Part Number	Tube Size	OD	Rec. Hole Size	L	Max (P)	Diameter (A)
62PTCBHR-4*	1/4"	.500"	.512"	1.53"	.26"	.625"
62PTCBHR-6	3/8"	.750"	.762"	1.92"	.36"	.875"
62PTCBHR-8	1/2"	.875"	.887"	2.15"	.43"	1.000"
62PTCBHR-10	5/8"	1.000"	1.012"	2.32"	.48"	1.250"

*Sleeve color may vary
