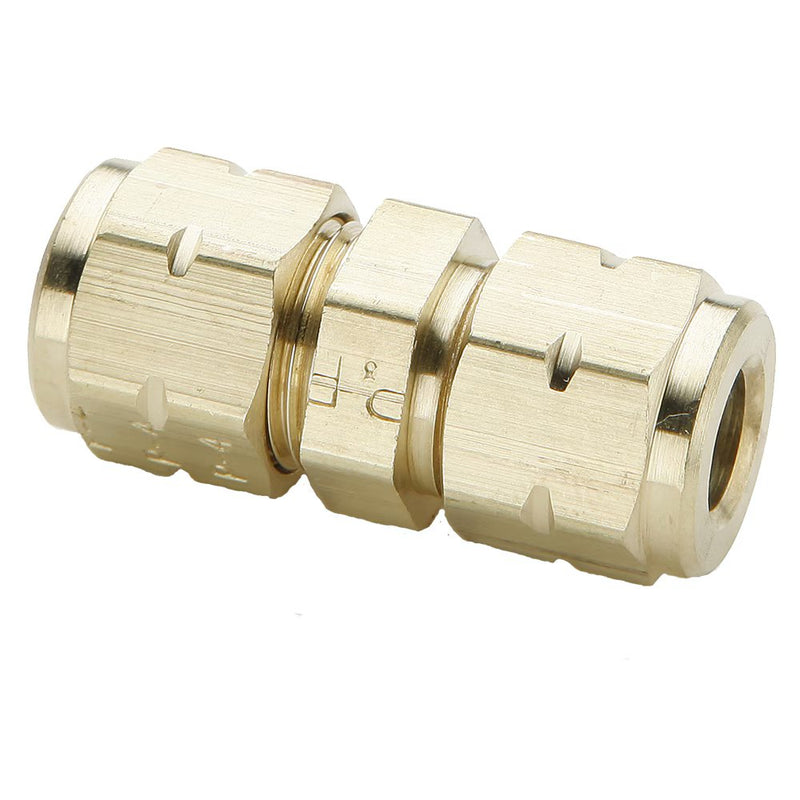

62VL-6 by Parker | Vibra-Lok Fittings | Union | 3/8" Tube Size | 11/16" Hex | 1.49" Length | Straight | Brass | Pack of 25

Save $338.70

$846.75

$846.75 - $846.75

$846.75

$508.05

$508.05 - $508.05

$508.05

by Parker Hannifin
Vibra-Lok Fittings:Union 62VL

Package Quantity: 25 Units

Specifications for Variant SKU: 62VL-6 Parker \| 25 \|
Brand:	Vibra-Lok
Series:	62VL Series
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	Fuel Grade, Vibration Resistance

Specification:
Product Features:	Brass Body Sleeves in Buna N and Fluorocarbon NPTF and SAE J1926 Straight Threads are Standard Excellent Vibration Resistance
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Oil Fuel Coolant Lines on engines
Pressure Range:	Dependent on condition and tube size, refer to pressure chart

Temperature Range:	-15° to +450° F (-26.1° to +232.2° C) with Fluorocarbon Sleeve -30° to +275° F (-34.4° to +135° C) with Buna N Sleeve
Compatible Tubing:	Copper Aluminum Steel (Bundy) Stainless Steel Glass


Part Number	Tube Size	Hex (C)	L	M	Flow Diameter (D)
62VL-4	1/4"	9/16"	1.39"	.77"	.188"
62VL-5	5/16"	5/8"	1.49"	.81"	.250"
62VL-6	3/8"	11/16"	1.49"	.80"	.312"
62VL-8	1/2"	7/8"	1.90"	.94"	.437"
