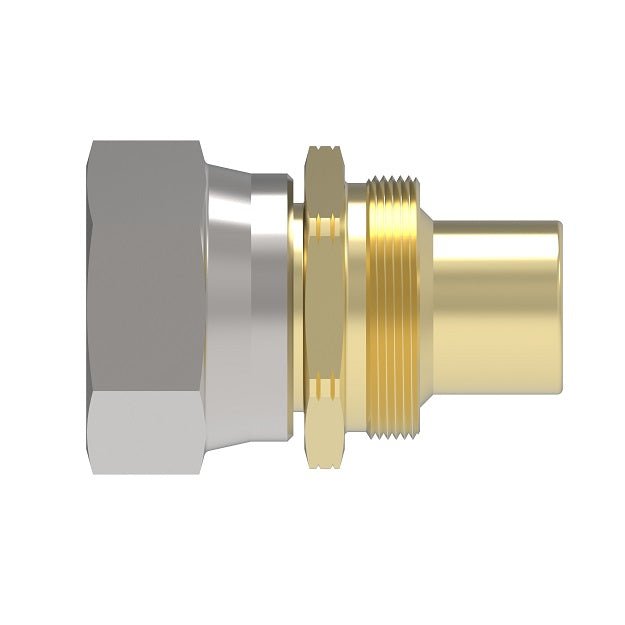

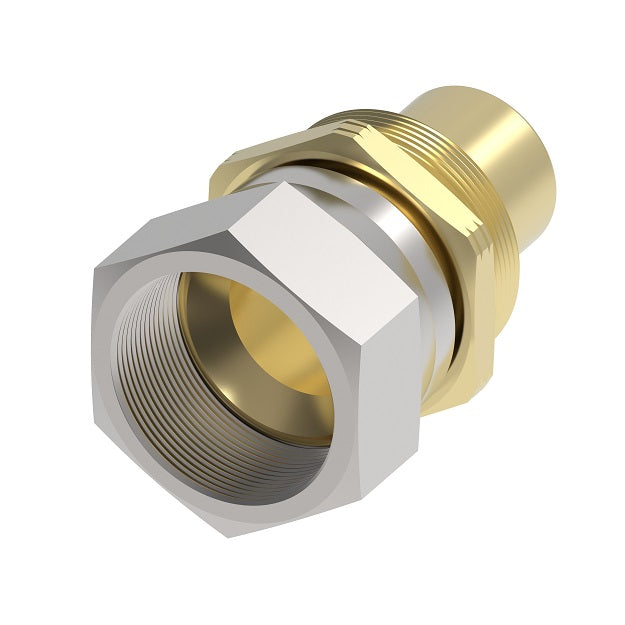

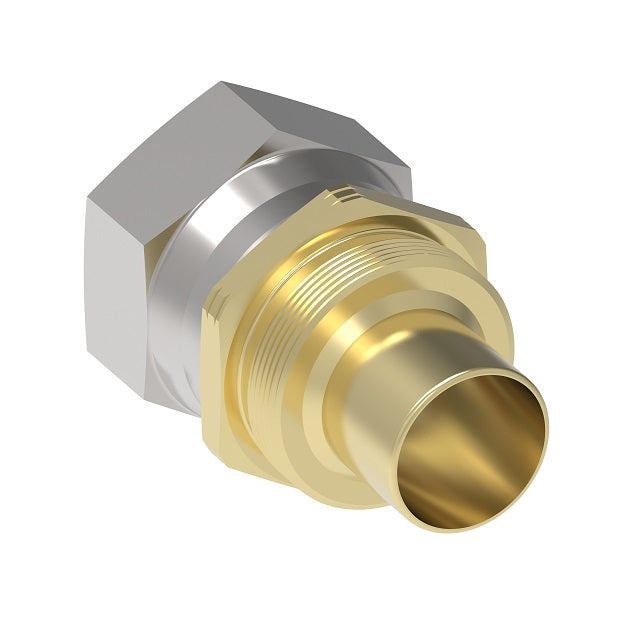

63-185535-24 Aeroquip by Danfoss | Reusable PTFE Hose Fitting | Nipple Assembly | -24 Female 37° JIC Flare Swivel x -24 Reusable Hose End | Brass & Steel

63-185535-24 Aeroquip by Danfoss | Reusable PTFE Hose Fitting | Nipple Assembly | -24 Female 37° JIC Flare Swivel x -24 Reusable Hose End | Brass & Steel

Name: 63-185535-24 Aeroquip by Danfoss | Reusable PTFE Hose Fitting | Nipple Assembly | -24 Female 37° JIC Flare Swivel x -24 Reusable Hose End | Brass & Steel
Brand: Danfoss/Eaton
SKU: 63-185535-24 Danfoss
Price: 303.64 USD
Availability: InStock

$303.64 - $303.64

$303.64

$303.64 - $303.64

$303.64

Aeroquip® by Danfoss
Reusable PTFE Hose Fitting - Nipple Assembly - Female 37° JIC Flare Swivel - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 63-185535-24 Danfoss
Brand:	Aeroquip
Ends Configuration:	1-1/2in Female JIC, 1-1/2in Reusable Hose End
Material(s):	Brass, Steel
Applicable Specs & Approvals:	Swivel
Compatible with the following Series:	2808 Series


Stainless Steel Part Number	Brass & Steel Part Number	Hose Size	Thread	A	D	EØ
185535-8C	-	-08	3/4-16	2.07"	1.48"	0.35"
-	63-185535-10	-10	7/8-14	2.22"	1.64"	0.44"
185535-16C	63-185535-16	-16	1-5/16-12	2.66"	1.90"	0.83"
-	63-185535-20	-20	1-5/8-12	3.14"	2.19"	1.06"
-	63-185535-24	-24	1-7/8-12	3.38"	2.42"	1.28"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
