63-190990-5 Aeroquip by Danfoss | Female SAE 45° Swivel Super Gem PTFE Reusable Hose Fitting | -05 Female SAE 45° Swivel x -05 Reusable Hose End | Steel & Brass

63-190990-5 Aeroquip by Danfoss | Female SAE 45° Swivel Super Gem PTFE Reusable Hose Fitting | -05 Female SAE 45° Swivel x -05 Reusable Hose End | Steel & Brass

Name: 63-190990-5 Aeroquip by Danfoss | Female SAE 45° Swivel Super Gem PTFE Reusable Hose Fitting | -05 Female SAE 45° Swivel x -05 Reusable Hose End | Steel & Brass
Brand: Danfoss/Eaton
SKU: 63-190990-5 Danfoss
Price: 20.23 USD
Availability: InStock

$20.23 - $20.23

$20.23

$20.23 - $20.23

$20.23

Aeroquip® by Danfoss

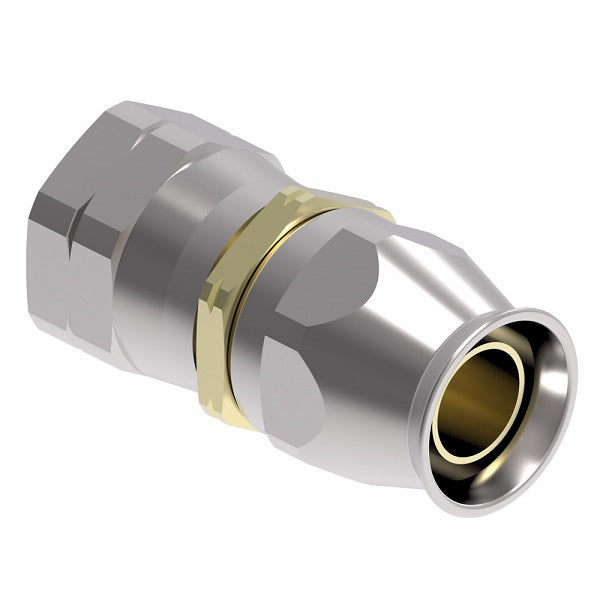

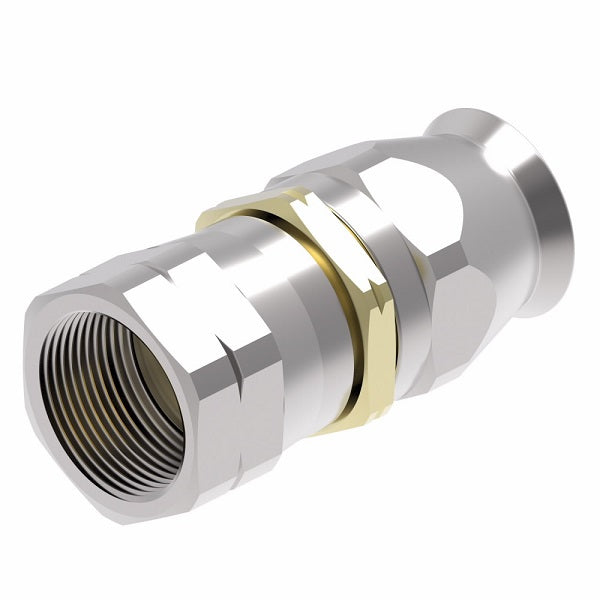

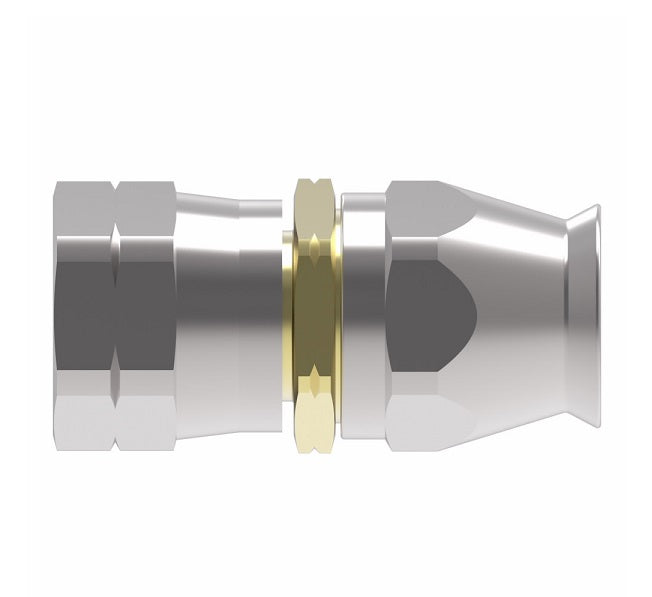

Super Gem Reusable Hose Fitting for PTFE Hose - Female SAE 45° Swivel - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 63-190990-5 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	5/16in Female SAE 45 Flare, 5/16in Reusable Hose End
Material(s):	Steel, Brass
Special Properties:	Swivel
Compatible with the following Series:	2807 Series \| SC-TW Series \| S-TW Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel & Brass Part Number	Hose Size	Thread	A	D	EØ	Sleeve Brass Part Number
63-190990-4	-04	7/16-20	1.58"	1.12"	0.16"	900568-4B
63-190990-5	-05	1/2-20	1.68"	1.17"	0.23"	900568-5B
63-190990-6	-06	5/8-18	1.77"	1.25"	0.28"	900568-6B
63-190990-8	-08	3/4-16	1.98"	1.36"	0.38"	900568-8B
63-190990-10	-10	7/8-14	2.22"	1.54"	0.47"	900568-10B
63-190990-12	-12	1-1/16-12	2.33"	1.67"	0.59"	900568-12B
