63-190990-8 Aeroquip by Danfoss | Female SAE 45° Swivel Super Gem PTFE Reusable Hose Fitting | -08 Female SAE 45° Swivel x -08 Reusable Hose End | Steel & Brass

63-190990-8 Aeroquip by Danfoss | Female SAE 45° Swivel Super Gem PTFE Reusable Hose Fitting | -08 Female SAE 45° Swivel x -08 Reusable Hose End | Steel & Brass

Name: 63-190990-8 Aeroquip by Danfoss | Female SAE 45° Swivel Super Gem PTFE Reusable Hose Fitting | -08 Female SAE 45° Swivel x -08 Reusable Hose End | Steel & Brass
Brand: Danfoss/Eaton
SKU: 63-190990-8 Danfoss
Price: 27.46 USD
Availability: InStock

$27.46 - $27.46

$27.46

$27.46 - $27.46

$27.46

Aeroquip® by Danfoss

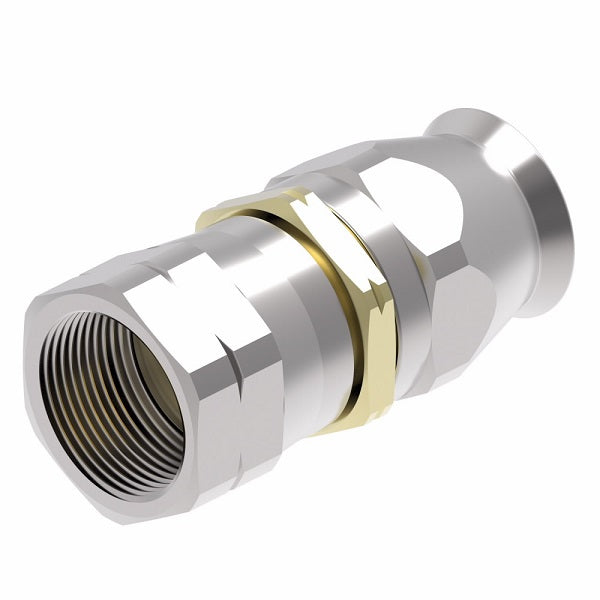

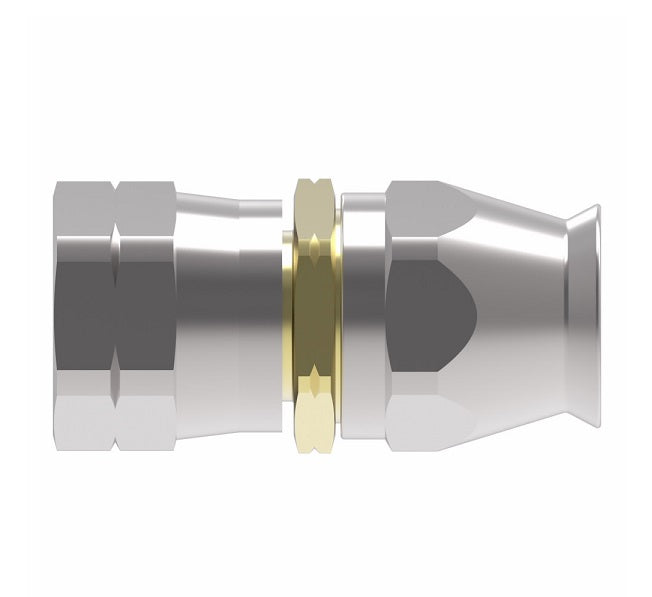

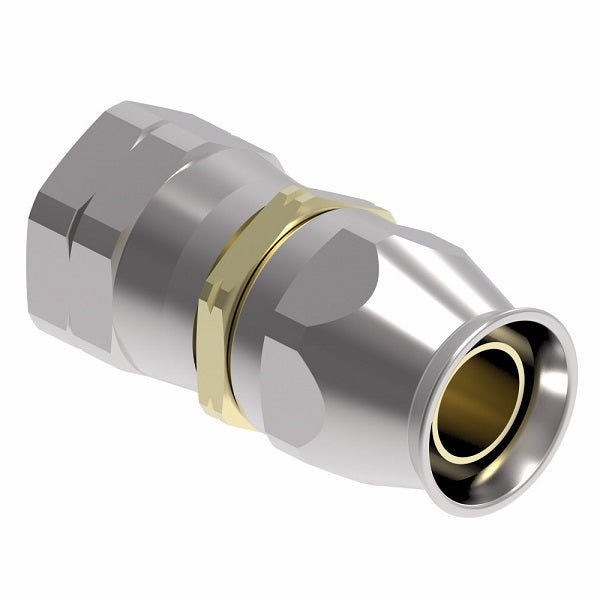

Super Gem Reusable Hose Fitting for PTFE Hose - Female SAE 45° Swivel - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 63-190990-8 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female SAE 45 Flare, 1/2in Reusable Hose End
Material(s):	Steel, Brass
Special Properties:	Swivel
Compatible with the following Series:	2807 Series \| SC-TW Series \| S-TW Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel & Brass Part Number	Hose Size	Thread	A	D	EØ	Sleeve Brass Part Number
63-190990-4	-04	7/16-20	1.58"	1.12"	0.16"	900568-4B
63-190990-5	-05	1/2-20	1.68"	1.17"	0.23"	900568-5B
63-190990-6	-06	5/8-18	1.77"	1.25"	0.28"	900568-6B
63-190990-8	-08	3/4-16	1.98"	1.36"	0.38"	900568-8B
63-190990-10	-10	7/8-14	2.22"	1.54"	0.47"	900568-10B
63-190990-12	-12	1-1/16-12	2.33"	1.67"	0.59"	900568-12B

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
