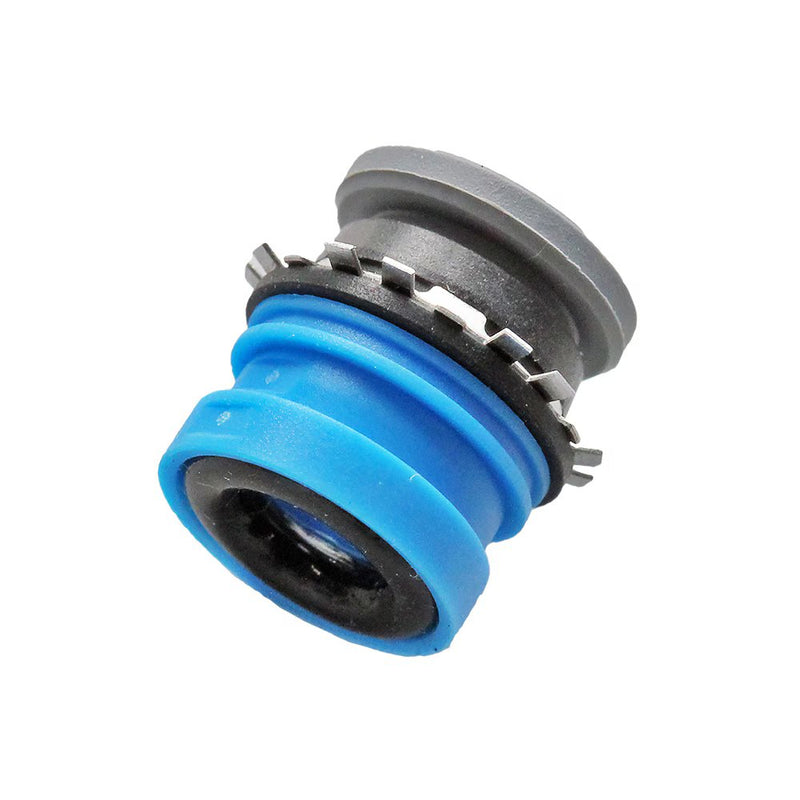

6300 06 01 24 by Parker | Legris Cartridge | 6 mm Tube Size | 11.8 mm Length | Brass

6300 06 01 24 by Parker | Legris Cartridge | 6 mm Tube Size | 11.8 mm Length | Brass

Save $0.34 Save $0.34
$5.25
$5.25 - $5.25
$5.25
$4.91
$4.91 - $4.91
$4.91

by Parker Hannifin
LIQUIfit® Push-In Fittings / Stud Fittings:6300 Carstick+ Cartridge EPDM
Specifications for Variant SKU: 6300 06 01 24 Parker
Brand: LIQUIfit®
Series: 6300 Series
Shape (Orientation): No Orientation
Material(s): Polymer, Stainless Steel
Seal Material(s): EPDM
Special Properties: Food Grade, Silicone Free, Bisphenol Free, Phthalate Free
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD G G1 H L Kg
6300 04 00 4 mm 8.1 mm 10.3 mm 10.4 mm 520 mm .001 Kg
6300 06 00 6 mm 9.9 mm 15.3 mm 11.8 mm 590 mm .002 Kg

50 cartridges per Carstick®
