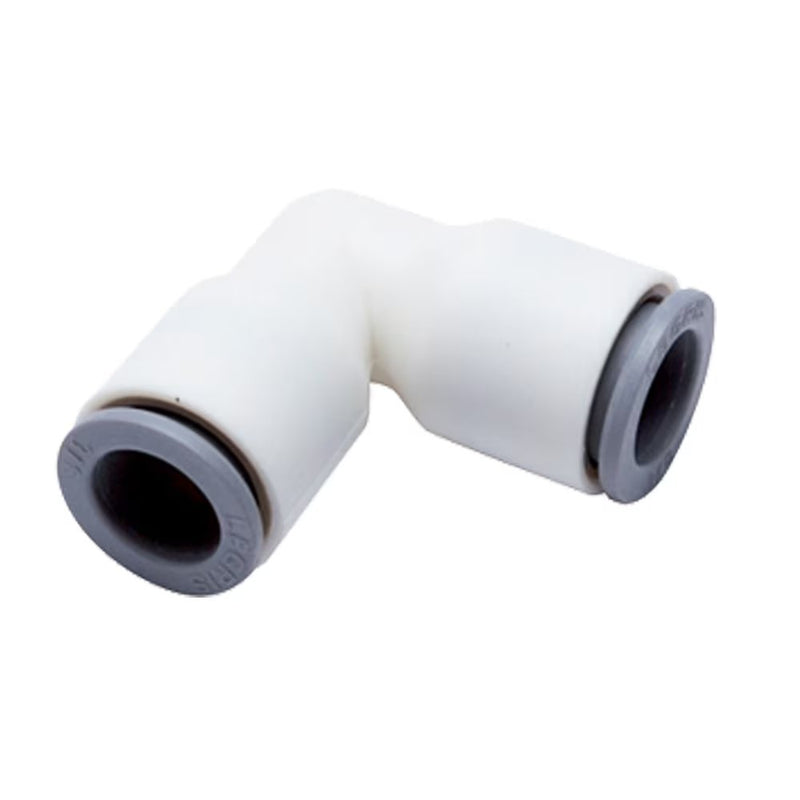

6302 60 00WP2 by Parker | Legris Tube-to-Tube Sitting | 3/8" Tube Size x 3/8" Tube Size | 34 mm Length | 90° Elbow | Polymer

6302 60 00WP2 by Parker | Legris Tube-to-Tube Sitting | 3/8" Tube Size x 3/8" Tube Size | 34 mm Length | 90° Elbow | Polymer | Pack of 10

Save $18.05 Save $18.05
$45.12
$45.12 - $45.12
$45.12
$27.07
$27.07 - $27.07
$27.07

by Parker Hannifin
LIQUIfit® Push-In Fittings / Tube-to-Tube Fittings:6302 Equal and Unequal Union Elbow

Package Quantity: 10 Units

Specifications for Variant SKU: 6302 60 00WP2 Parker | 10 |
Brand: LIQUIfit®
Series: 6302 Series
Shape (Orientation): 90° Elbow
Material(s): Polymer, Stainless Steel
Seal Material(s): EPDM
Special Properties: Food Grade, Silicone Free, Bisphenol Free, Phthalate Free
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD ØD1 G L Kg
6302 08 60WP2 5/16" 3/8" 16 mm 34 mm .009 Kg
6302 56 00WP2 1/4" 1/4" 11 mm 24 mm .005 Kg
6302 56 08WP2 1/4" 5/16" 13.5 mm 29.5 mm .006 Kg
6302 56 60WP2 1/4" 3/8" 16 mm 34 mm .008 Kg
6302 60 00WP2 3/8" 3/8" 16 mm 34 mm .006 Kg
6302 60 62WP2 3/8" 1/2" 22 mm 46.5 mm .011 Kg
6302 62 00WP2 1/2" 1/2" 22 mm 46.5 mm .017 Kg
