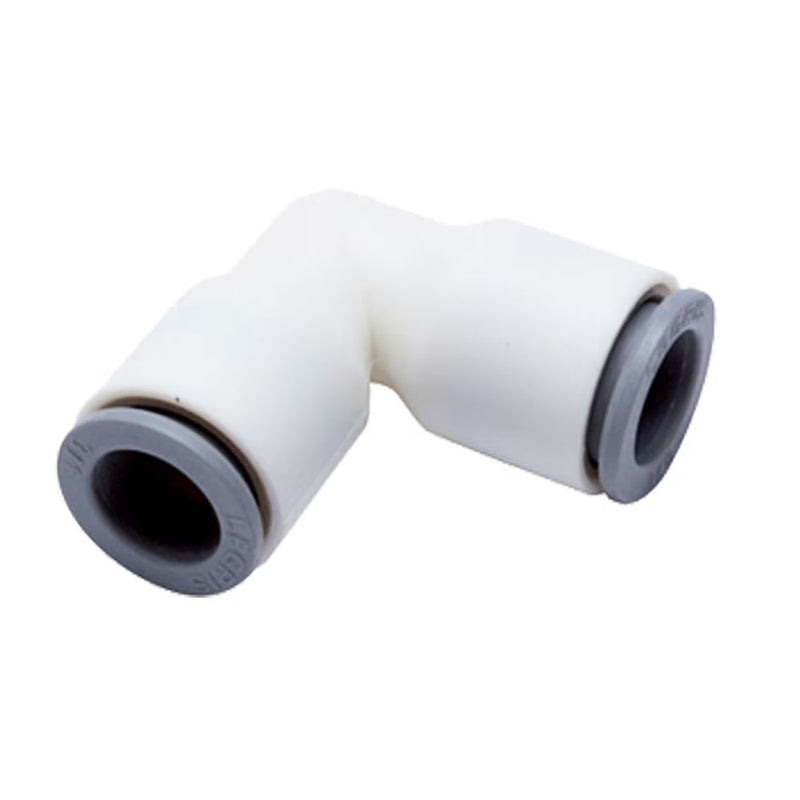

6302 60 62WP2 by Parker | Legris Tube-to-Tube Sitting | 1/2" Tube Size x 3/8" Tube Size | 46.5 mm Length | 90° Elbow | Polymer | Pack of 5

6302 60 62WP2 by Parker | Legris Tube-to-Tube Sitting | 1/2" Tube Size x 3/8" Tube Size | 46.5 mm Length | 90° Elbow | Polymer | Pack of 5

Save $11.95 Save $11.95
$29.88
$29.88 - $29.88
$29.88
$17.93
$17.93 - $17.93
$17.93

by Parker Hannifin
LIQUIfit® Push-In Fittings / Tube-to-Tube Fittings:6302 Equal and Unequal Union Elbow

Package Quantity: 5 Units

Specifications for Variant SKU: 6302 60 62WP2 Parker | 5 |
Brand: LIQUIfit®
Series: 6302 Series
Shape (Orientation): 90° Elbow
Material(s): Polymer, Stainless Steel
Seal Material(s): EPDM
Special Properties: Food Grade, Silicone Free, Bisphenol Free, Phthalate Free
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD ØD1 G L Kg
6302 08 60WP2 5/16" 3/8" 16 mm 34 mm .009 Kg
6302 56 00WP2 1/4" 1/4" 11 mm 24 mm .005 Kg
6302 56 08WP2 1/4" 5/16" 13.5 mm 29.5 mm .006 Kg
6302 56 60WP2 1/4" 3/8" 16 mm 34 mm .008 Kg
6302 60 00WP2 3/8" 3/8" 16 mm 34 mm .006 Kg
6302 60 62WP2 3/8" 1/2" 22 mm 46.5 mm .011 Kg
6302 62 00WP2 1/2" 1/2" 22 mm 46.5 mm .017 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
