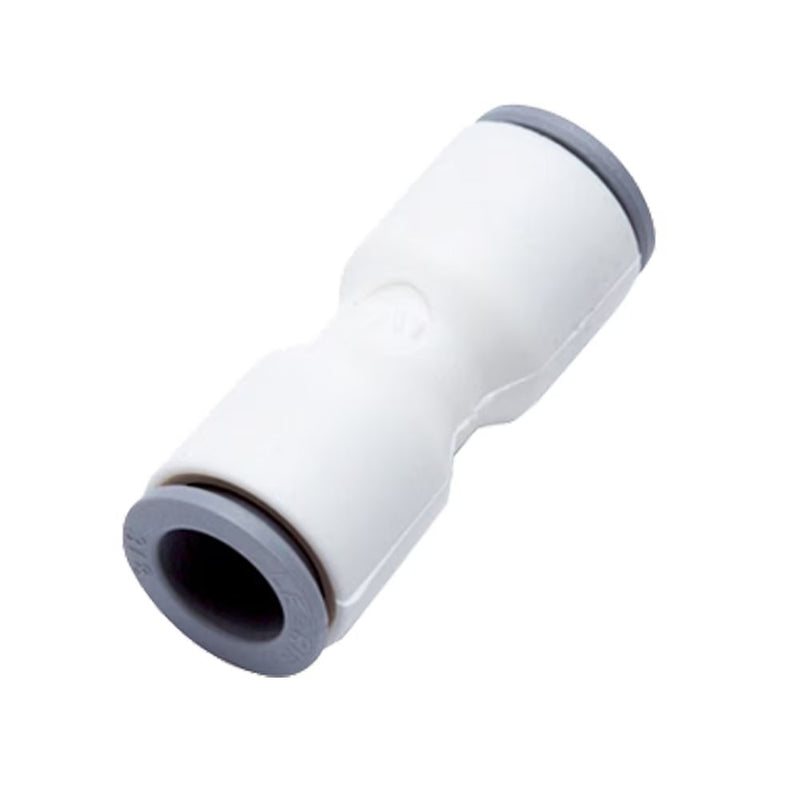

6306 60 00WP2 by Parker | Legris Union Connector | 3/8" Tube Size x 3/8" Tube Size | 42 mm Length | Straight | Polymer

6306 60 00WP2 by Parker | Legris Union Connector | 3/8" Tube Size x 3/8" Tube Size | 42mm Length | Straight | Polymer | Pack of 10

Save $8.82 Save $8.82
$31.75
$31.75 - $31.75
$31.75
$22.93
$22.93 - $22.93
$22.93

by Parker Hannifin
LIQUIfit® Push-In Fittings / Tube-to-Tube Fittings:6306 Equal and Unequal Union Connector

Package Quantity: 10 Units

Specifications for Variant SKU: 6306 60 00WP2 Parker | 10 |
Brand: LIQUIfit®
Series: 6306 Series
Shape (Orientation): Straight
Material(s): Polymer, Stainless Steel
Seal Material(s): EPDM
Special Properties: Food Grade, Silicone Free, Bisphenol Free, Phthalate Free
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
`
Part Number ØD ØD1 G (mm) G (in) L (mm) L (in) Kg
6306 08 60WP2 5/16" 3/8" 16 mm - 42 mm - .008 Kg
6306 08 62WP2 5/16" 1/2" 22 mm - 55 mm - .018 Kg
6306 56 00WP2 5/16" 3/8" 16 mm - 42 mm - .008 Kg
6306 56 08WP2 1/4" 5/16" - .53" - 1.46" -
6306 56 60WP2 1/4" 3/8" 16 mm - 41 mm - .007 Kg
6306 60 00WP2 3/8" 3/8" 16 mm - 42 mm - .006 Kg
6306 60 62WP2 3/8"1/2" 22 mm - 56 mm - .020 Kg
6306 62 00WP2 1/2" 1/2" 22 mm - 57 mm - .016 Kg
