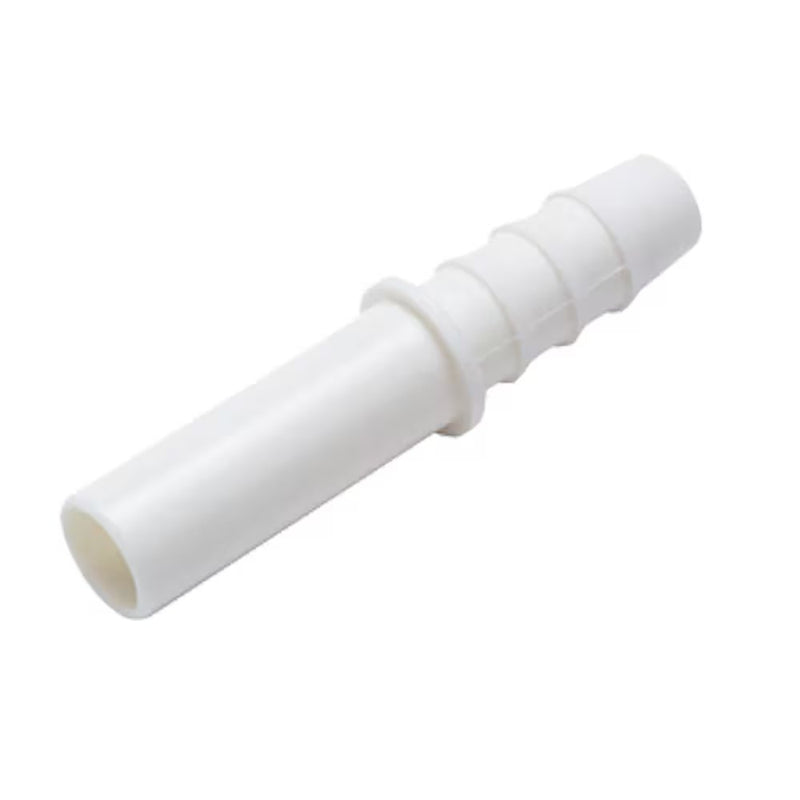

6322 10 07WP2 by Parker | Legris Plug-In Barb | 10 mm Tube Stem x 7 mm Barb | 50 mm Length | Straight | Polymer

6322 10 07WP2 by Parker | Legris Plug-In Barb | 10mm Tube Stem x 7mm Barb | 50mm Length | Straight | Polymer | Pack of 10

Save $8.99 Save $8.99
$32.72
$32.72 - $32.72
$32.72
$23.73
$23.73 - $23.73
$23.73

by Parker Hannifin
LIQUIfit® Push-In Fittings / Plug-In Accessories:6322 Plug-In Barb Connector

Package Quantity: 10 Units

Specifications for Variant SKU: 6322 10 07WP2 Parker | 10 |
Brand: LIQUIfit®
Series: 6322 Series
Shape (Orientation): Straight
Material(s): Polymer
Special Properties: Food Grade, Silicone Free, Bisphenol Free, Phthalate Free
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD ØD1 L L1 L2 Kg
6322 06 04WP2 6 mm 4 mm 39 mm 25 mm 17 mm .004 Kg
6322 08 06WP2 8 mm 5.75 mm 43 mm 25 mm 17 mm .005 Kg
6322 10 07WP2 10 mm 7 mm 50 mm 29.5 mm 22 mm .006 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
