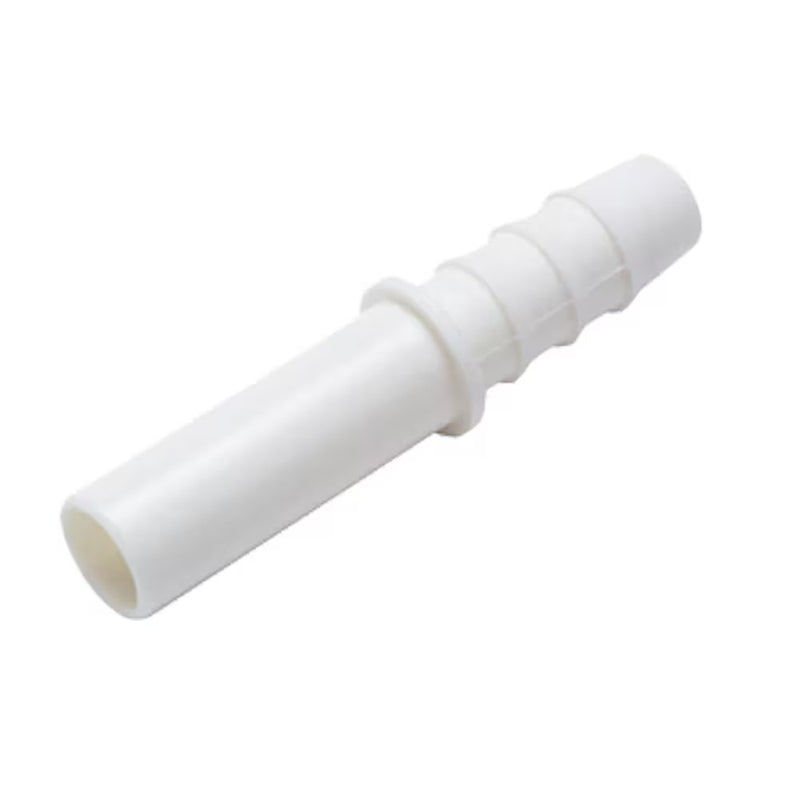

6322 60 56WP2 by Parker | Legris Plug-In Barb | 3/8" Tube Stem x .32" Barb | 45 mm Length | Straight | Polymer | Pack of 10

6322 60 56WP2 by Parker | Legris Plug-In Barb | 3/8" Tube Stem x .32" Barb | 45 mm Length | Straight | Polymer | Pack of 10

Save $9.25 Save $9.25
$23.12
$23.12 - $23.12
$23.12
$13.87
$13.87 - $13.87
$13.87

by Parker Hannifin
LIQUIfit® Push-In Fittings / Plug-In Accessories:6322 Plug-In Barb Connector

Package Quantity: 10 Units

Specifications for Variant SKU: 6322 60 56WP2 Parker | 10 |
Brand: LIQUIfit®
Series: 6322 Series
Shape (Orientation): Straight
Material(s): Polymer
Special Properties: Food Grade, Silicone Free, Bisphenol Free, Phthalate Free
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD ØD1 ØD2 L L1 L2 Kg
6322 56 56WP2 1/4" .28" .32" 39 mm 24.5 mm 17 mm .001 Kg
6322 60 08WP2 3/8" .33" .38" 50 mm 29.5 mm 22 mm .002 Kg
6322 60 56WP2 3/8" .28" .32" 45 mm 24.5 mm 17 mm .008 Kg
6322 60 60WP2 3/8" .40" .45" 50 mm 29 mm 22 mm .002 Kg
6322 62 60WP2 1/2" .40" .45" 58 mm 37.5 mm 30 mm .005 Kg
