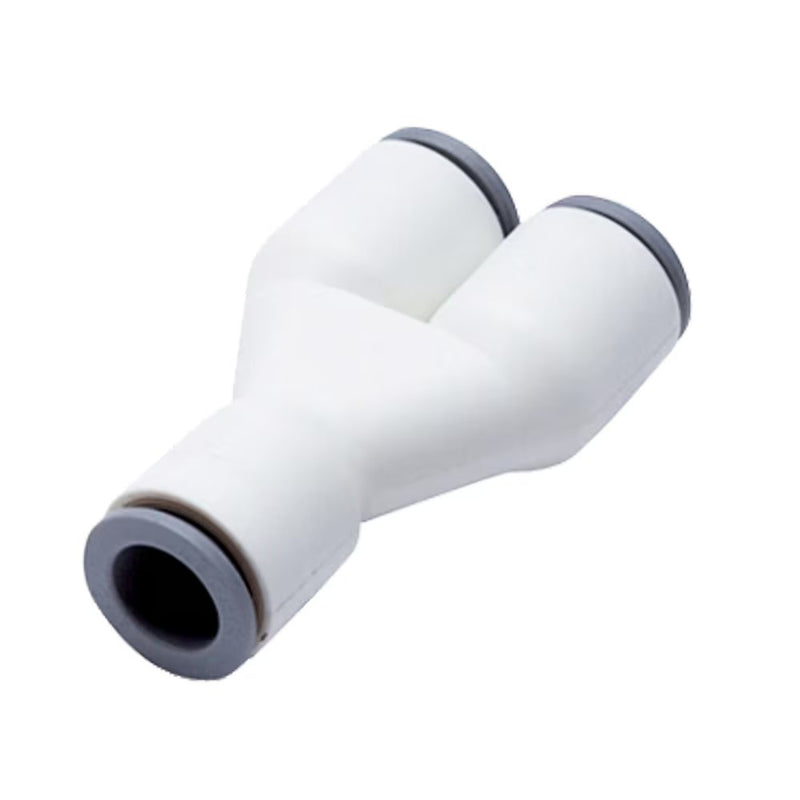

6340 12 00WP2 by Parker | Legris Tube-to-Tube Fitting | 12 mm Tube Size x 12 mm Tube Size | 60.5 mm Length | Y | Polymer

6340 12 00WP2 by Parker | Legris Tube-to-Tube Fitting | 12 mm Tube Size x 12 mm Tube Size | 60.5 mm Length | Y | Polymer | Pack of 5

Save $10.82 Save $10.82
$48.02
$48.02 - $48.02
$48.02
$37.20
$37.20 - $37.20
$37.20

by Parker Hannifin
LIQUIfit® Push-In Fittings / Tube-to-Tube Fittings:6340 Equal Single Y Piece

Package Quantity: 5 Units

Specifications for Variant SKU: 6340 12 00WP2 Parker | 5 |
Brand: LIQUIfit®
Series: 6340 Series
Shape (Orientation): Y
Material(s): Polymer, Stainless Steel
Seal Material(s): EPDM
Special Properties: Food Grade, Silicone Free, Bisphenol Free, Phthalate Free
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD ØD1 H K L N Kg
6340 04 00WP2 4 mm 4 mm 17.5 mm 8.5 mm 30 mm 9 mm .004 Kg
6340 06 00WP2 6 mm 6 mm 21.5 mm 10.5 mm 36.5 mm 11 mm .008 Kg
6340 08 00WP2 8 mm 8 mm 28 mm 13.5 mm 44.5 mm 14.5 mm .007 Kg
6340 10 00WP2 10 mm 10 mm 33 mm 16 mm 53 mm 17 mm .010 Kg
6340 12 00WP2 12 mm 12 mm 39 mm 19 mm 60.5 mm 20 mm .025 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
