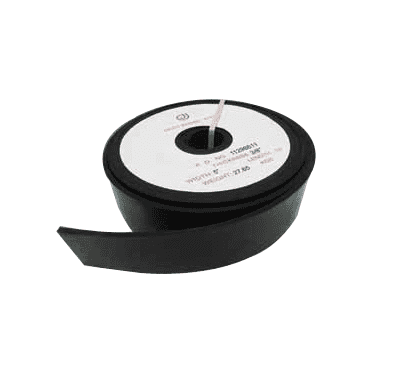

6341-1604 by Jason Industrial | 6341 Series | Square Edge | 1/2" Gauge | 4" Width | SBR Skirtboard Rubber | 50ft

$164.88 - $164.88

$164.88

$168.67

$168.67 - $168.67

$168.67

Jason Industrial Inc. Skirtboard Rubber - 6341 SBR Skirtboard Rubber - Square Edge

Package Quantity: 50 FT

Quantity

Specifications for Variant SKU: 6341-1604 Jason \| 50 \|

Applications:
Use with conveyor belt or as chute lining
Features:
Abrasion and Weather Resistant 55-60 Durometer 1,000 PSI Tensile Strength, 300% Elongation Cut Widths (Not Extruded) Temperature Range: -20 deg. F (-29 deg. C) to +180 deg. F (+83 deg. C)

Part Number	Gauge		Width		Roll Length		Weight per 50ft Roll
	in.	mm	in.	mm	ft	m	lbs.
6341-0802	1/4"	6.35mm	2"	50.80mm	50ft.	15.24m	16 lbs.
6341-0803	1/4"	6.35mm	3"	76.20mm	50ft.	15.24m	24 lbs.
6341-0804	1/4"	6.35mm	4"	101.60mm	50ft.	15.24m	31 lbs.
6341-0805	1/4"	6.35mm	5"	127.00mm	50ft.	15.24m	38 lbs.
6341-0806	1/4"	6.35mm	6"	152.40mm	50ft.	15.24m	47 lbs.
6341-0807	1/4"	6.35mm	7"	177.80mm	50ft.	15.24m	56 lbs.
6341-0808	1/4"	6.35mm	8"	203.20mm	50ft.	15.24m	65 lbs.
6341-0810	1/4"	6.35mm	10"	254.00mm	50ft.	15.24m	78 lbs.
6341-0812	1/4"	6.35mm	12"	304.80mm	50ft.	15.24m	97 lbs.
6341-0848	1/4"	6.35mm	48"	1219.20mm	50ft.	15.24m	390 lbs.

6341-1202	3/8"	9.53mm	2"	50.80mm	50ft.	15.24m	21 lbs.
6341-1203	3/8"	9.53mm	3"	76.20mm	50ft.	15.24m	32 lbs.
6341-1204	3/8"	9.53mm	4"	101.60mm	50ft.	15.24m	42 lbs.
6341-1205	3/8"	9.53mm	5"	127.00mm	50ft.	15.24m	53 lbs.
6341-1206	3/8"	9.53mm	6"	125.40mm	50ft.	15.24m	63 lbs.
6341-1207	3/8"	9.53mm	7"	177.80mm	50ft.	15.24m	76 lbs.
6341-1208	3/8"	9.53mm	8"	203.20mm	50ft.	15.24m	90 lbs.
6341-1210	3/8"	9.53mm	10"	254.00mm	50ft.	15.24m	108 lbs.
6341-1212	3/8"	9.53mm	12"	304.80mm	50ft.	15.24m	128 lbs.
6341-1248	3/8"	9.53mm	48"	1217.20mm	50ft.	15.24m	520 lbs.

6341-1602	1/2"	12.70mm	2"	50.80mm	50ft.	15.24m	30 lbs.
6341-1603	1/2"	12.70mm	3"	76.20mm	50ft.	15.24m	45 lbs.
6341-1604	1/2"	12.70mm	4"	101.60mm	50ft.	15.24m	60 lbs.
6341-1605	1/2"	12.70mm	5"	127.00mm	50ft.	15.24m	74 lbs.
6341-1606	1/2"	12.70mm	6"	152.40mm	50ft.	15.24m	89 lbs.
6341-1607	1/2"	12.70mm	7"	177.80mm	50ft.	15.24m	104 lbs.
6341-1608	1/2"	12.70mm	8"	203.20mm	50ft.	15.24m	121 lbs.
6341-1610	1/2"	12.70mm	10"	254.00mm	50ft.	15.24m	150 lbs.
6341-1612	1/2"	12.70mm	12"	304.80mm	50ft.	15.24m	181 lbs.
6341-1648	1/2"	12.70mm	48"	1219.20mm	50ft.	15.24m	726 lbs.

6341-2402	3/4"	19.05mm	2"	50.80mm	50ft.	15.24m	60 lbs.
6341-2403	3/4"	19.05mm	3"	76.20mm	50ft.	15.24m	68 lbs.
6341-2404	3/4"	19.05mm	4"	101.60mm	50ft.	15.24m	91 lbs.
6341-2405	3/4"	19.05mm	5"	127.00mm	50ft.	15.24m	112 lbs.
6341-2406	3/4"	19.05mm	6"	152.40mm	50ft.	15.24m	133 lbs.
6341-2407	3/4"	19.05mm	7"	177.80mm	50ft.	15.24m	157 lbs.
6341-2408	3/4"	19.05mm	8"	203.20mm	50ft.	15.24m	182 lbs.
6341-2410	3/4"	19.05mm	10"	254.00mm	50ft.	15.24m	226 lbs.
6341-2412	3/4"	19.05mm	12"	304.80mm	50ft.	15.24m	270 lbs.
6341-2448	3/4"	19.05mm	48"	1219.20mm	50ft.	15.24m	1120 lbs.

6341-3202	1"	25.40mm	2"	50.80mm	50ft.	15.24m	77 lbs.
6341-3203	1"	25.40mm	3"	76.20mm	50ft.	15.24m	95 lbs.
6341-3204	1"	25.40mm	4"	101.60mm	50ft.	15.24m	116 lbs.
6341-3205	1"	25.40mm	5"	127.00mm	50ft.	15.24m	114 lbs.
6341-3206	1"	25.40mm	6"	152.40mm	50ft.	15.24m	173 lbs.
6341-3207	1"	25.40mm	7"	177.80mm	50ft.	15.24m	199 lbs.
6341-3208	1"	25.40mm	8"	203.20mm	50ft.	15.24m	228 lbs.
6341-3210	1"	25.40mm	10"	254.00mm	50ft.	15.24m	289 lbs.
6341-3212	1"	25.40mm	12"	304.80mm	50ft.	15.24m	345 lbs.
6341-3248	1"	25.40mm	48"	1219.20mm	50ft.	15.24m	1420 lbs.
