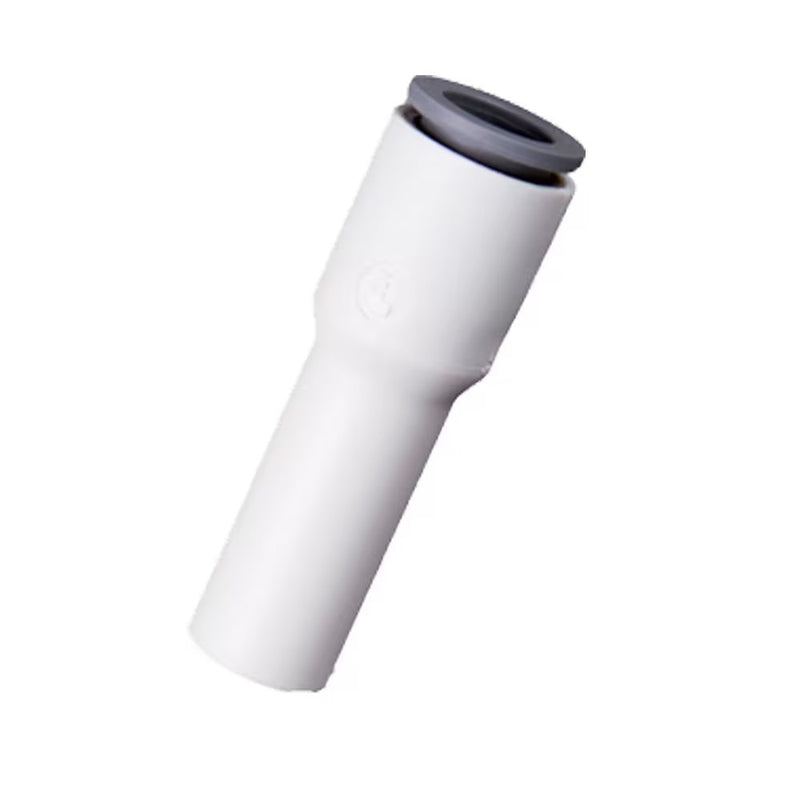

6366 08 60WP2 by Parker | Legris Plug-In Reducer | 5/16" Tube Size x 3/8" Tube Size | 48.5 mm Length | Straight | Polymer

6366 08 60WP2 by Parker | Legris Plug-In Reducer | 5/16" Tube Size x 3/8" Tube Size | 48.5 mm Length | Straight | Polymer | Pack of 10

Save $9.21 Save $9.21
$34.01
$34.01 - $34.01
$34.01
$24.80
$24.80 - $24.80
$24.80

by Parker Hannifin
LIQUIfit® Push-In Fittings / Plug-In Accessories:6366 Plug-In Reducer

Package Quantity: 10 Units

Specifications for Variant SKU: 6366 08 60WP2 Parker | 10 |
Brand: LIQUIfit®
Series: 6366 Series
Shape (Orientation): Straight
Material(s): Polymer, Stainless Steel
Seal Material(s): EPDM
Special Properties: Food Grade, Silicone Free, Bisphenol Free, Phthalate Free
Technical Characteristics:
  • Compatible Fluids: Water, beverages, CO2 (inert use)
  • Working Pressure: Vacuum to 16 bar
  • Working Temperature: -10°C to +95°C
    -20° to +70°C for 16 mm to 10 bar
Advantages:
  • Bio-sourced polymer meeting food process regulations
  • Compliant with FDA, NSF, DM174, KTW, ACS standards
  • Easy-to-clean external surfaces
  • Free of bisphenol and phthalates
Regulations:
  • RoHS
  • REACH
  • FDA: 21 CFR
  • NSF: 51
  • NSF 61 - C HOT
  • 1935/2004
  • DM 174
  • ACS
  • KTW
Component Materials:
  • Body and Adapter: Bio-Based Polymer
  • Grey Release button: Technical Polymer
  • Gripping ring or collet (6501 and 6599): Stainless Steel
  • Seal: EPDM
Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Part Number ØD ØD1 G L L1 Kg
6366 56 08WP2 1/4" 5/16" 11 mm 41 mm 22.5 mm .015 Kg
6366 56 60WP2 1/4" 3/8" 11 mm 41 mm 20.5 mm .002 Kg
6366 08 60WP2 5/16" 3/8" 13.5 mm 48.5 mm 29 mm .003 Kg
6366 08 62WP2 5/16" 1/2" 16 mm 48.5 mm 22 mm .007 Kg
6366 60 62WP2 3/8" 1/2" 16 mm 51 mm 30 mm ..011 Kg
