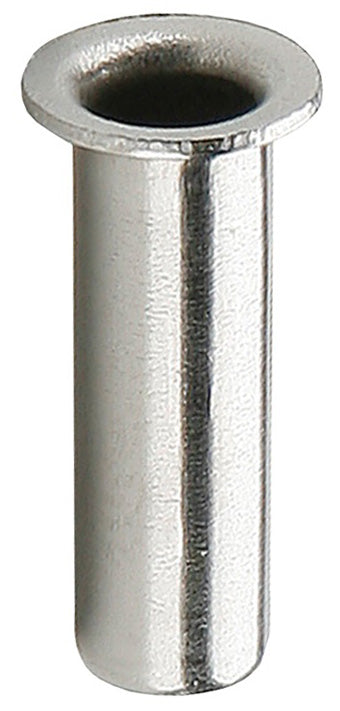

63NAB12 by Dixon Valve | Air Brake Fitting | Insert | 3/4" Tube Size | 302/304 Stainless Steel

63NAB12 by Dixon Valve | Air Brake Fitting | Insert | 3/4" Tube Size | 302/304 Stainless Steel

Save $1.45 Save $1.45
$3.62
$3.62 - $3.62
$3.62
$2.17
$2.17 - $2.17
$2.17

Dixon Valve & Coupling
Air Brake Fitting | Insert

Designed for use in air brake systems or cab controls.

Compatible tubing: SAE J844 type A and B.
Specifications for Variant SKU: 63NAB12 Dixon
Shape (Orientation): Straight
Material(s): 302/304 Stainless Steel
Use:
  • Recommended tubing: Polyethylene, Polyurethane 95A Durometer.
Features:
  • Utilize ribbed sleeve for compression and positive grip.
Construction:
  • 302 or 304 Stainless Steel.
Specifications:
  • Temperature range: -40°F to 200°F (-40°C to 93°C).
Approvals:
  • Meets DOT FMVSS 571.106 and SAE J246.
Assembly Instructions:
  • 1. Cut tubing squarely - maximum of 15° angle allowable.
  • 2. Check that port or mating part is clean and free of debris.
  • 3. Insert tubing into fittings until it bottoms on seat.
  • 4. Tighten nut with wrench until one thread remains visible on the fittings body (this will allow for a number of remakes); or, the nut should be screwed down finger tight, then wrench-tightened as indicated in the chart below.
Tube Size Turns required to seal from hand tight
3/16" 2-1/2
1/4" 3
3/8" & 1/2" 4
5/8" & 3/4" 3-1/2
Part Number Tube Size
63NAB4 1/4"
63NAB6 3/8"
63NAB8 1/2"
63NAB10 5/8"
63NAB12 3/4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
