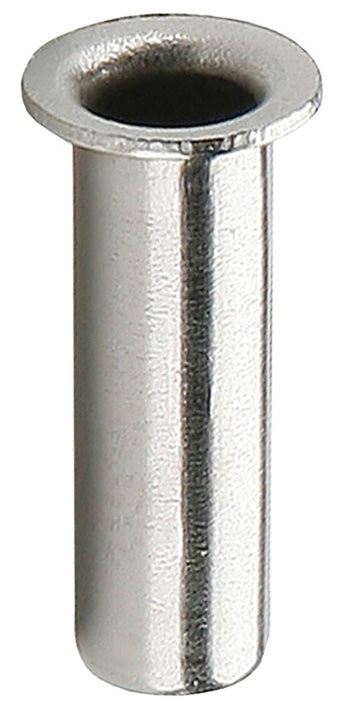

63NAB8 by Dixon Valve | Air Brake Fitting | Insert | 1/2" Tube Size | 302/304 Stainless Steel

Name: 63NAB8 by Dixon Valve | Air Brake Fitting | Insert | 1/2" Tube Size | 302/304 Stainless Steel
Brand: Dixon
SKU: 63NAB8 Dixon
Price: 0.63 USD
Availability: InStock

Save $0.05

$0.68

$0.68 - $0.68

$0.68

$0.63

$0.63 - $0.63

$0.63

Dixon Valve & Coupling
Air Brake Fitting | Insert

Designed for use in air brake systems or cab controls.

Compatible tubing: SAE J844 type A and B.

Quantity

Specifications for Variant SKU: 63NAB8 Dixon
Shape (Orientation):	Straight
Material(s):	302/304 Stainless Steel

Use:
Recommended tubing: Polyethylene, Polyurethane 95A Durometer.
Features:
Utilize ribbed sleeve for compression and positive grip.
Construction:
302 or 304 Stainless Steel.
Specifications:
Temperature range: -40°F to 200°F (-40°C to 93°C).
Approvals:
Meets DOT FMVSS 571.106 and SAE J246.
Assembly Instructions:
1. Cut tubing squarely - maximum of 15° angle allowable. 2. Check that port or mating part is clean and free of debris. 3. Insert tubing into fittings until it bottoms on seat. 4. Tighten nut with wrench until one thread remains visible on the fittings body (this will allow for a number of remakes); or, the nut should be screwed down finger tight, then wrench-tightened as indicated in the chart below.

Tube Size	Turns required to seal from hand tight
3/16"	2-1/2
1/4"	3
3/8" & 1/2"	4
5/8" & 3/4"	3-1/2

Part Number	Tube Size
63NAB4	1/4"
63NAB6	3/8"
63NAB8	1/2"
63NAB10	5/8"
63NAB12	3/4"
