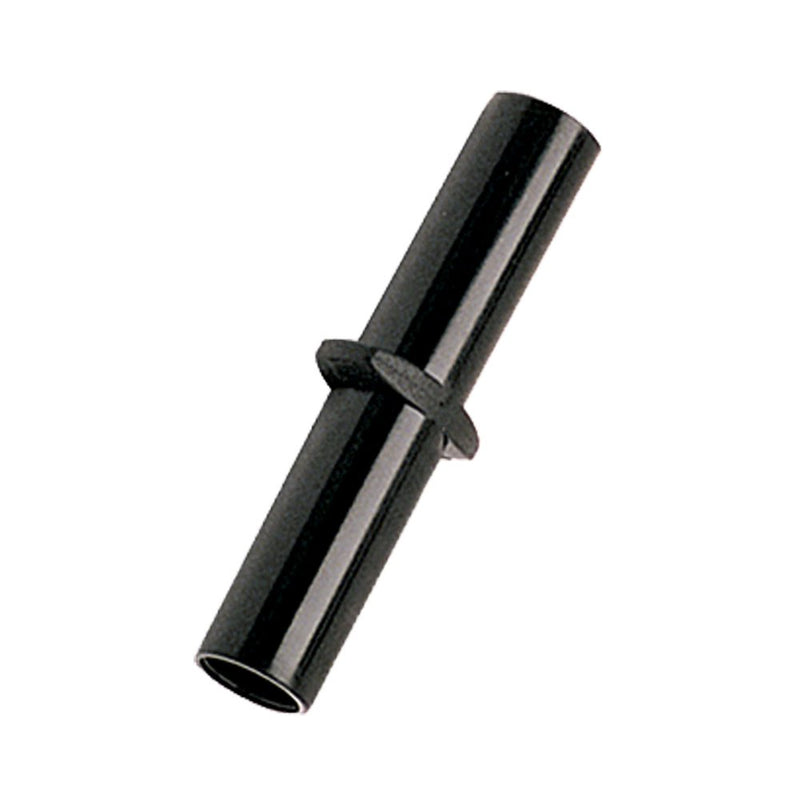

63PLP-10M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Accessories | 10mm Double Male Union | 51.5mm Length (L) | Straight | Glass-Reinforced Nylon | Pack of 10

63PLP-10M by Parker | Prestolok PLP Composite Push-to-Connect Fittings | Accessories | 10mm Double Male Union | 51.5mm Length (L) | Straight | Glass-Reinforced Nylon | Pack of 10

Save $19.46 Save $19.46
$48.65
$48.65 - $48.65
$48.65
$29.19
$29.19 - $29.19
$29.19

by Parker Hannifin
Push-to-Connect Fittings:63PLP Double Male Union

Package Quantity: 10 Units

Specifications for Variant SKU: 63PLP-10M Parker | 10 |
Series: 63PLP Series
Shape (Orientation): Straight
Material(s): Glass-Reinforced Nylon
Special Properties: Corrosion Resistance, Chemical Resistance, Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Pneumatic
  • Industrial
  • Robotic
  • Automation
  • Printing
  • Packaging
  • Textile
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 290 PSI (19.9 bar) depending on tubing
Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only)
Temperature Range: -4° to +175° F (-20° to +79.4° C)
5° to +155° F (-15° to +68.3° C) (3/16” size only)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • Fluoropolymer
  • Polyethylene
Part Number Tube Size L
63PLP-4M 4 mm 34.5 mm
63PLP-6M 6 mm 38.5 mm
63PLP-8M 8 mm 41.0 mm
63PLP-10M 10 mm 51.5 mm
63PLP-12M 12 mm 60.0
63PLP-14M 14 mm 69.5 mm
