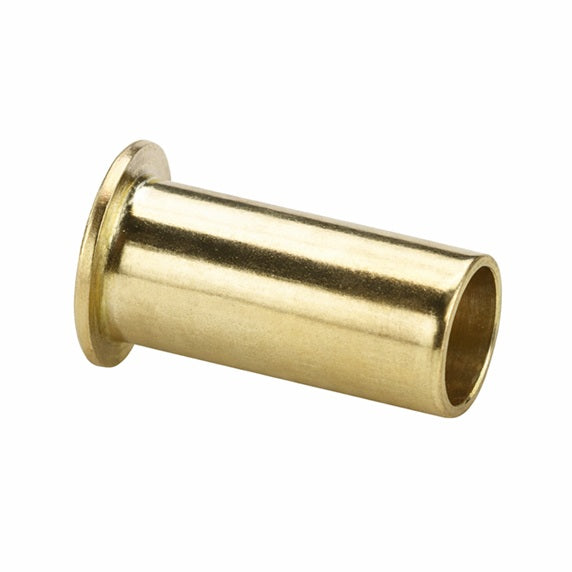

63PT-10-62 by Parker | Compression Fitting | Insert | 5/8" Tube OD x .062 Wall Thickness | .72" Length | Straight | Brass | Pack of 100

63PT-10-62 by Parker | Compression Fitting | Insert | 5/8" Tube OD x .062 Wall Thickness | .72" Length | Straight | Brass | Pack of 100

Save $249.92 Save $249.92
$624.80
$624.80 - $624.80
$624.80
$374.88
$374.88 - $374.88
$374.88

by Parker Hannifin
Compression Fittings:Brass Insert 63PT

Package Quantity: 100 Units

Specifications for Variant SKU: 63PT-10-62 Parker | 100 |
Series: 63PT Series
Shape (Orientation): Straight
Material(s): Brass
Special Properties: UL Listed
Product Features:
  • Meets functional requirements of SAE J-512
  • UL Listed for flammable liquid
  • Brass or acetal sleeve available
  • No tube preparation
  • Forged and extruded shapes
Markets:
  • Industrial
  • Packaging
  • Pneumatic
  • Printing
Applications:
  • Air lines
  • Lubrication Lines
  • Cooling lines
  • Industry
  • Machinery
  • Compressors
  • Fluid transfer
Specification:
Pressure Range: See Chart Below
Temperature Range: -65° to +250° F (- 53.8° to +121.1° C)
Compatible Tubing:
  • Copper
  • Aluminum
  • Thermoplastic tubing
Part Number Tube OD Tube Wall L OD
63PT-2-16 1/8" .016" .46" .080"
63PT-2-23 1/8" .023" .45" .073"
63PT-3-25 3/16" .025" .45" .135"
63PT-3-40 3/16" .040" .52" .095"
63PT-4-62 1/4" .062" .33" .110"
63PT-5-40 5/16" .040" .50" .232"
63PT-5-62 5/16" .062" .53" .187"
63PT-10-62 5/8" .062" .72" .483"
