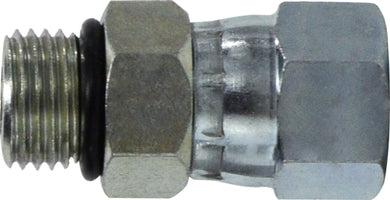

6402O88 (6402-O-8-8) Midland Hydraulic O-Ring to JIC Swivel Adapter - 3/4-16 Male O-Ring Boss x 3/4-16 Female JIC 37° Flare - Steel

6402O88 by Midland | Hydraulic O-Ring to JIC Swivel | 3/4-16 Male O-Ring Boss x 3/4-16 Female JIC 37° Flare | Adapter | Steel

Save $2.52 Save $2.52
$6.30
$6.30 - $6.30
$6.30
$3.78
$3.78 - $3.78
$3.78

Midland Industries
Hydraulic Adapters: O-Ring to JIC Swivel Adapter - Steel

Inventory @ Manufacturers Warehouse: 558 Units
Specifications for Variant SKU: 6402O88 Midland
Shape (Orientation): Straight
Ends Configuration: 1/2in Male O-Ring Boss, 1/2in Female JIC
Material(s): Steel
Technical Info:
Crossover Series:
6402 2266 F65X 1213 9316
Part Number Male O-Ring Boss
(1)		 Male O-Ring Boss
Thread
(1)		 Female JIC 37° Flare
(2)		 Female JIC 37° Flare
Thread
(2)
6402O44
(6402-O-4-4) 		1/4" 7/16-20 1/4" 7/16-20
6402O46 1/4" 7/16-20 3/8" 9/16-18
6402O55 5/16" 1/2-20 5/16" 1/2-20
6402O66
(6402-O-6-6)		 3/8" 9/16-18 3/8" 9/16-18
6402O68 3/8" 9/16-18 1/2" 3/4-16
6402O88
(6402-O-8-8)		 1/2" 3/4-16 3/8" 3/4-16
6402O810 1/2" 3/4-16 1/2" 3/4-16
6402O812 1/2" 3/4-16 5/8" 3/4-16
6402O108 1/2" 3/4-16 3/4" 1-1/16-12
6402O86 5/8" 3/4-16 1/2" 9/16-18
6402O1010
(6402-O-10-10)		 5/8" 7/8-14 5/8" 7/8-14
6402O1212
(6402-O-12-12) 		3/4" 1-1/16-12 3/4" 1-1/16-12
6402O1616 1" 1-5/16-12 1" 1-5/16-12
6402O2020 1-1/4" 1-5/8-12 1-1/4" 1-5/8-12
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
