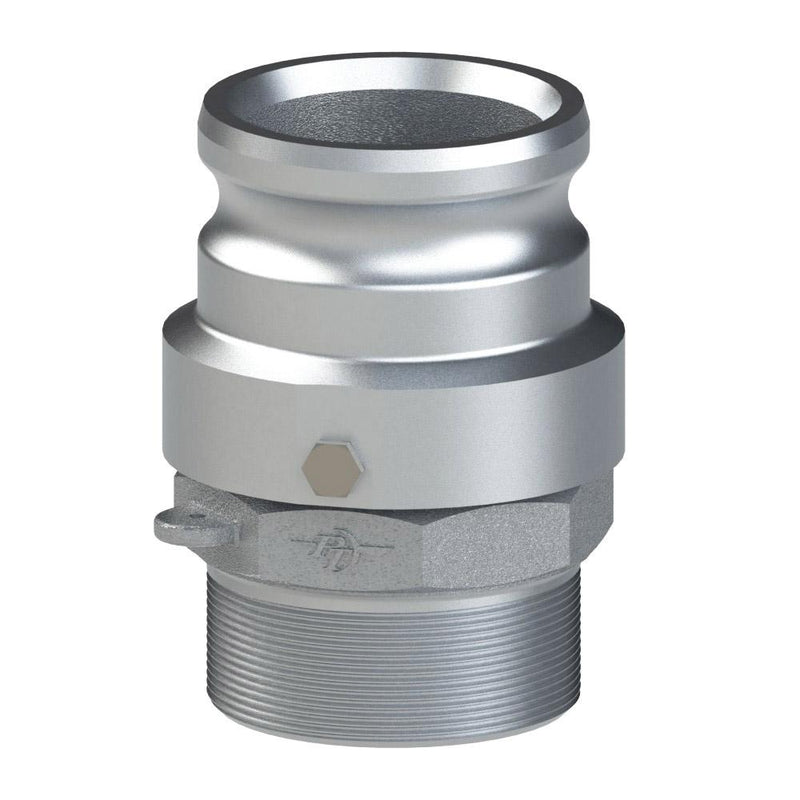

64173000 (30FSV) by PT-Coupling | Swivel Cam & Groove Adapter | Type FSV | 3" Swivel Adapter x 3" Male NPT | 316 Stainless Steel | Viton Seal

Save $253.56

$683.07

$683.07 - $683.07

$683.07

$429.51

$429.51 - $429.51

$429.51

PT Coupling
Swivel Cam & Groove (Camlock) Adapter | Type FSV | Swivel Adapter x Male NPT | 316 Stainless Steel | Viton Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 64173000 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type F
Ends Configuration:	3in Male Cam & Groove, 3in Male NPT
Material(s):	316 Stainless Steel
Seal Material(s):	Viton
Special Properties:	Swivel

Features & Applications:
Ball bearing swivel action. Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA.


Part Name	316 Stainless Steel Viton® Item #	Adapter Size	Male NPT Thread Size	Overall Length (C)	Exposed Length (D)	Inside Diameter (E)	Across Corners (F)	Chain Lug Extension (G)	Max. Allowable Working Press. (PSI)*
15FSV	64171500	1-1/2"	1-1/2"	3.29"	2.31"	1.34"	2.44"	0.30"	250 PSI
20FSV	64172000	2"	2"	3.57"	2.57"	1.72"	2.84"	0.28"	250 PSI
30FSV	64173000	3"	3"	4.37"	2.87"	2.80"	4.07"	0.44"	200 PSI
40FSV	64174000	4"	4"	4.79"	3.19"	3.78"	5.27"	0.40"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
