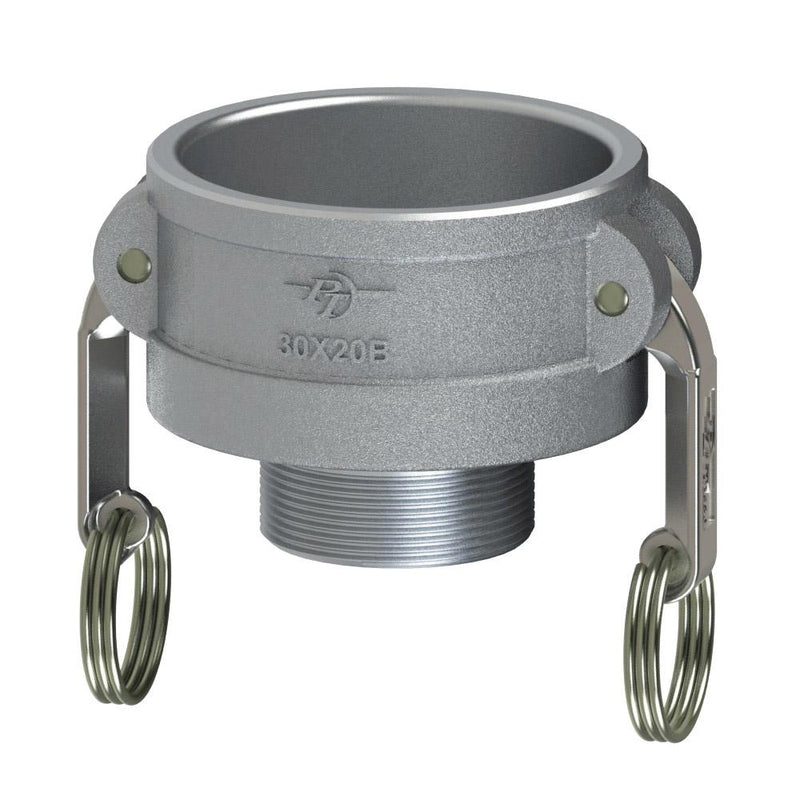

64183020 (30X20B) by PT-Coupling | Reducing Cam & Groove Adapter | Type B | 3" Coupler x 2" Male NPT | 316 Stainless Steel | Buna-N Seal

64183020 (30X20B) by PT-Coupling | Reducing Cam & Groove Adapter | Type B | 3" Coupler x 2" Male NPT | 316 Stainless Steel | Buna-N Seal

Save $29.99 Save $29.99
$269.94
$269.94 - $269.94
$269.94
$239.95
$239.95 - $239.95
$239.95

PT Coupling
Reducing Cam & Groove (Camlock) Adapter | Type B | Adapter x Male NPT | 316 Stainless Steel | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 64183020 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type B
Ends Configuration: 3in Female Cam & Groove, 2in Male NPT
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile

PRODUCT DESCRIPTION

Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Male NPT
Threads		 Max. Allowable
Working Press.
(PSI)*
10X07B 64181007 1" 3/4" 250 PSI
10X15B 64181015** 1" 1-1/2" 250 PSI
15X10B 64181510** 1-1/2" 1" 250 PSI
20X10B 64182010** 2" 1" 250 PSI
20X15B 64182015 2" 1-1/2" 250 PSI
20X30B 64182030** 2" 3" 200 PSI
25X20B 64182520 2-1/2" 2" 200 PSI
25X30B 64182530 2-1/2" 3" 200 PSI
30X20B 64183020 3" 2" 200 PSI
30X25B 64183025 3" 2-1/2" 200 PSI
30X40B 64183040** 3" 4" 150 PSI
40X20B 64184020** 4" 2" 150 PSI
40X30B 64184030 4" 3" 150 PSI

** Denotes parts are produced as a welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
