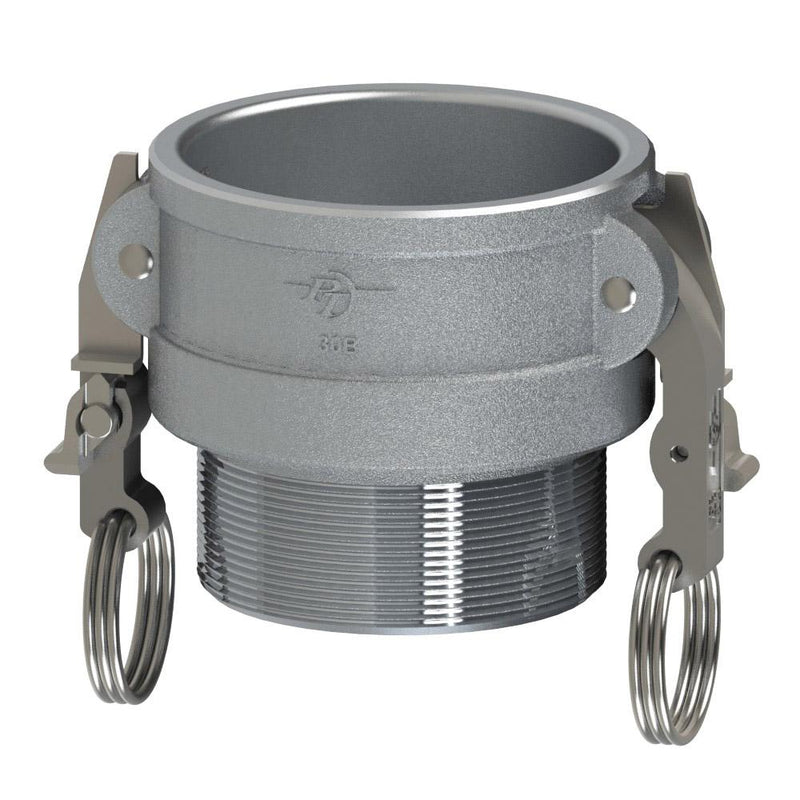

64183020L2 (30X20B SLII) by PT-Coupling | STA-LOK® II Reducing Cam & Groove Adapter | Type B | 3" Coupler x 2" Male NPT | 316 Stainless Steel | Buna-N Seal

Name: 64183020L2 (30X20B SLII) by PT-Coupling | STA-LOK® II Reducing Cam & Groove Adapter | Type B | 3" Coupler x 2" Male NPT | 316 Stainless Steel | Buna-N Seal
Brand: PT-Coupling
SKU: 64183020L2 PT-Coupling
Price: 326.61 USD
Availability: InStock

Save $192.81

$519.42

$519.42 - $519.42

$519.42

$326.61

$326.61 - $326.61

$326.61

PT Coupling
STA-LOK® II Reducing Cam & Groove (Camlock) Adapter | Type B | Coupler x Male NPT | 316 Stainless Steel | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 64183020L2 PT-Coupling
Series:	STA-LOK II
Shape (Orientation):	Straight
Cam Type:	Type B
Ends Configuration:	3in Female Cam & Groove, 2in Male NPT
Material(s):	316 Stainless Steel
Seal Material(s):	Buna-N/Nitrile

Overview:
STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
Pins, rings & the lock plate in STA-LOK® II couplings are 300 series Stainless Steel. Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA

Part Name	Item #	Coupler Size	Male NPT Thread	Max. Allowable Working Press. (PSI)*
20X15B SLII	64182015L2	2"	1-1/2"	250 PSI
30X20B SLII	64183020L2	3"	2"	200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
