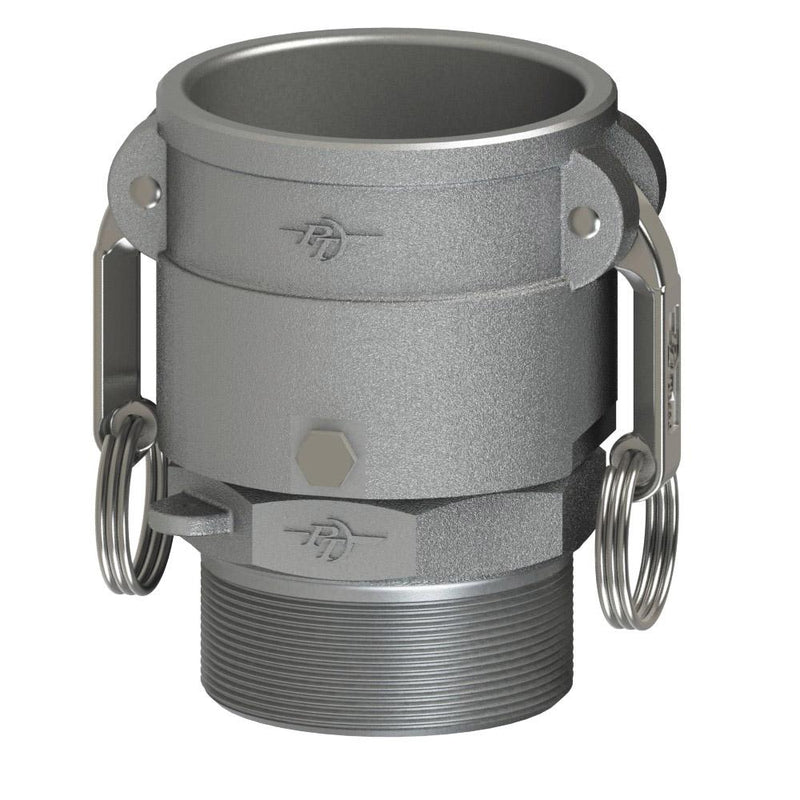

64193000 (30ASV) by PT-Coupling | Swivel Cam & Groove Adapter | Type BSV | 3" Swivel Coupler x 3" Male NPT | 316 Stainless Steel | Viton Seal

Save $288.47

$777.12

$777.12 - $777.12

$777.12

$488.65

$488.65 - $488.65

$488.65

PT Coupling
Swivel Cam & Groove (Camlock) Adapter | Type BSV | Swivel Coupler x Male NPT | 316 Stainless Steel | Viton Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 64193000 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type B
Ends Configuration:	3in Female Cam & Groove, 3in Male NPT
Material(s):	316 Stainless Steel
Seal Material(s):	Viton
Special Properties:	Swivel

Features & Applications:
Ball bearing swivel action. Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA.


Part Name	316 Stainless Steel Viton® Item #	Coupler Size	Male NPT Thread Size	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Exposed Length (D)	Inside Diameter (E)	Max. Allowable Working Press. (PSI)*
20BSV	64192000	2"	2"	7.54"	3.94"	3.20"	2.15"	1.88"	250 PSI
30BSV	64193000	3"	3"	9.56"	5.46"	3.82"	2.27"	2.88"	200 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
