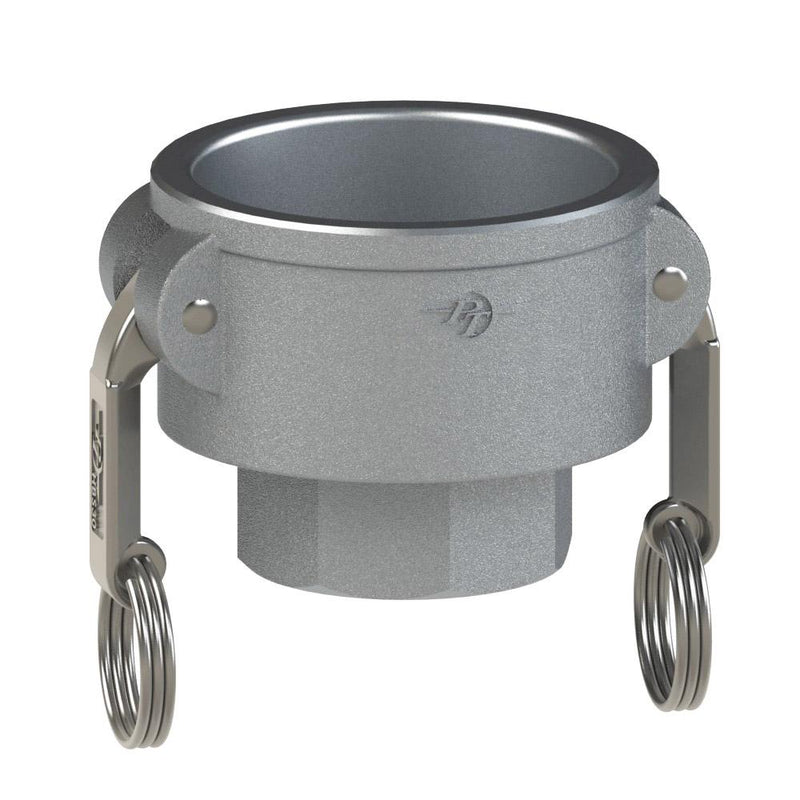

64201510 (15X10D) by PT-Coupling | Reducing Cam & Groove Adapter | Type D | 1-1/2" Coupler x 1" Female NPT | 316 Stainless Steel | Buna-N Seal

64201510 (15X10D) by PT-Coupling | Reducing Cam & Groove Coupler | Type D | 1-1/2" Coupler x 1" Female NPT | 316 Stainless Steel | Buna-N Seal

Save $94.71

$255.12

$255.12 - $255.12

$255.12

$160.41

$160.41 - $160.41

$160.41

PT Coupling
Reducing Cam & Groove (Camlock) Adapter | Type D | Coupler x Female NPT | 316 Stainless Steel | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 64201510 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type D
Ends Configuration:	1-1/2in Female Cam & Groove, 1in Female NPT
Material(s):	316 Stainless Steel
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA

Part Name	Item #	Coupler Size	Female NPT Thread	Max. Allowable Working Press. (PSI)*
15X10D	64201510	1-1/2"	1"	250 PSI
20X15D	64202015	2"	1-1/2"	250 PSI
25X20D	64202520**	2-1/2"	2"	200 PSI
30X20D	64203020	3"	2"	200 PSI
40X30D	64204030	4"	3"	150 PSI

** Denotes parts are produced as a welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
