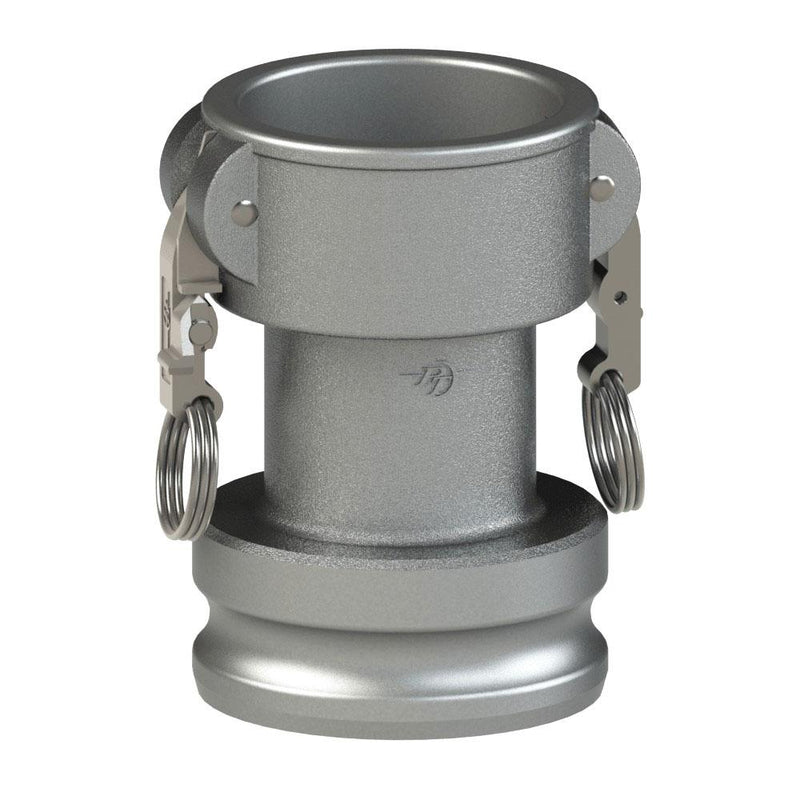

64264020L2 (40CX20A SLII) by PT-Coupling | STA-LOK® II Reducing Cam & Groove Adapter | Type CXA | Short | 4" Coupler x 2" Adapter | 316 Stainless Steel | Buna-N Seal

Save $256.75

$691.68

$691.68 - $691.68

$691.68

$434.93

$434.93 - $434.93

$434.93

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 64264020L2 PT-Coupling
Series:	STA-LOK II
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	4in Female Cam & Groove, 2in Male Cam & Groove
Material(s):	316 Stainless Steel
Seal Material(s):	Buna-N/Nitrile

Overview:
STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
Pins, rings & the lock plate in STA-LOK® II couplings are 300 series Stainless Steel. Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA

Part Name	Item #	Coupler Size	Adapter Size	Max. Allowable Working Press. (PSI)*
20CX10A SLII	64262010L2**	2"	1"	250 PSI
25CX20A SLII	64262520L2**	2-1/2"	2"	200 PSI
40CX20A SLII	64264020L2	4"	2"	150 PSI
40CX25A SLII	64264025L2	4"	2-1/2"	150 PSI
40CX30A SLII	64264032L2	4"	3"	150 PSI
60CX30A SLII	64266030L2	6"	3"	75 PSI
60CX40A SLII	64266040L2	6"	4"	75 PSI

** Denotes parts are produced as a welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
