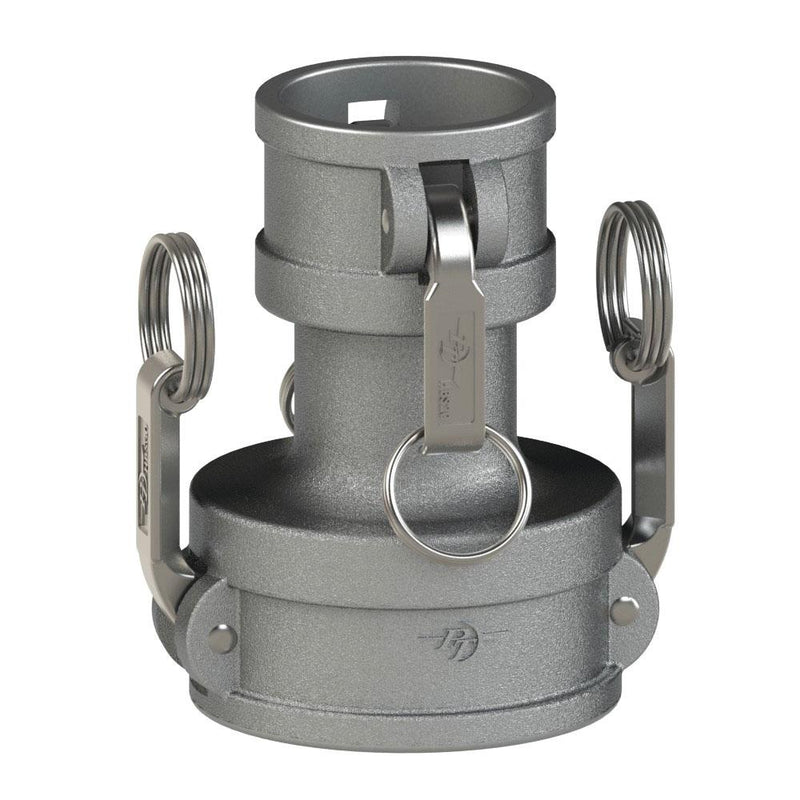

64273040 (30CX40C) by PT-Coupling | Reducing Cam & Groove Adapter | Spool Coupler | Type CXC | 3" Coupler x 4" Coupler | 316 Stainless Steel | Buna-N Seal

64273040 (30CX40C) by PT-Coupling | Reducing Cam & Groove Coupler | Spool Coupler | Type CXC | 3" Coupler x 4" Coupler | 316 Stainless Steel | Buna-N Seal

Save $239.94 Save $239.94
$646.38
$646.38 - $646.38
$646.38
$406.44
$406.44 - $406.44
$406.44

PT Coupling
Cam & Groove (Camlock) Adapter | Spool Coupler | Type CXC | Coupler x Coupler | 316 Stainless Steel | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 64273040 PT-Coupling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 3in Female Cam & Groove, 4in Female Cam & Groove
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile
Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Coupler
Size		 Max. Allowable
Working Press.
(PSI)*
10CX10C 64271010 1" 1" 250 PSI
15CX15C 64271515 1-1/2" 1-1/2" 250 PSI
20CX20C 64272020 2" 2" 250 PSI
30CX20C 64273020 3" 2" 200 PSI
30CX30C 64273030 3" 3" 200 PSI
30CX40C 64273040 3" 4" 150 PSI
40CX30C 64274030 4" 3" 150 PSI
40CX40C 64274040** 4" 4" 150 PSI

** Denotes parts are produced as welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
