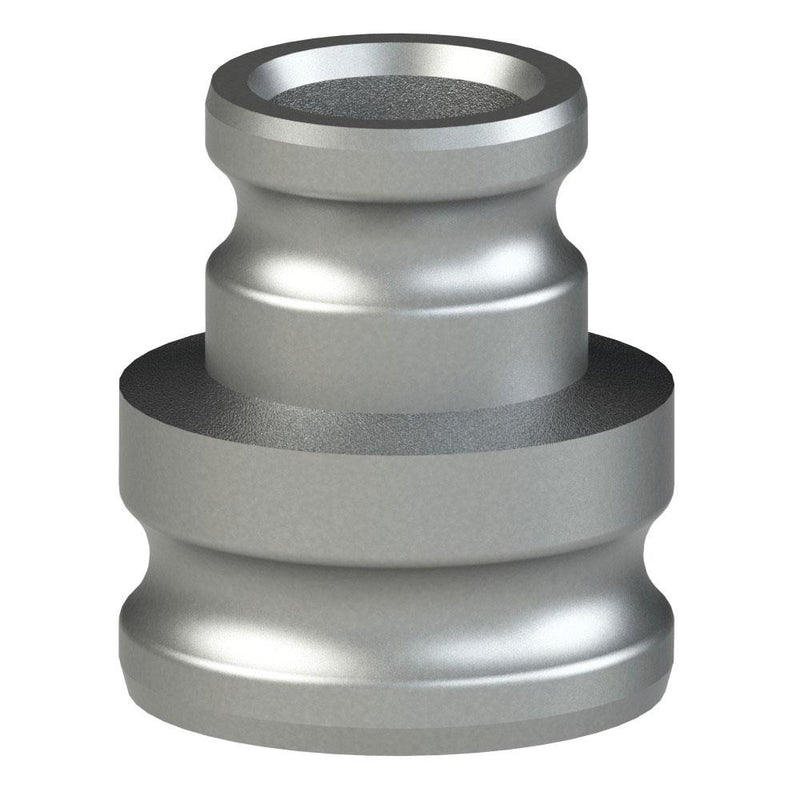

64280101 (SAE05XE05) by PT-Coupling | Cam & Groove Adapter | Spool Adapter | Type SA | 1/2" Adapter x 1/2" Adapter | 316 Stainless Steel

Save $46.25

$124.58

$124.58 - $124.58

$124.58

$78.33

$78.33 - $78.33

$78.33

PT Coupling
Cam & Groove (Camlock) Adapter | Spool Adapter | Type SA | Adapter x Adapter | 316 Stainless Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 64280101 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	1/2in Male Cam & Groove, 1/2in Male Cam & Groove, Some Ends Match
Material(s):	316 Stainless Steel

Features & Applications:
Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA

Part Name	Item #	Adapter Size	Adapter Size	Max. Allowable Working Press. (PSI)*
SAE05XE05	64280101	1/2"	1/2"	250 PSI
SA07X07	64280707	3/4"	3/4"	250 PSI
SA10X10	64281010	1"	1"	250 PSI
SA15X15	64281515	1-1/2"	1-1/2"	250 PSI
SA15X20	64281520	1-1/2"	2"	250 PSI
SA20X20	64282020	2"	2"	250 PSI
SA20X30	64282030	2"	3"	200 PSI
SA25X25	64282525	2-1/2"	2-1/2"	200 PSI
SA30X30	64283030	3"	3"	200 PSI
SA30X40	64283040	3"	4"	150 PSI
SA40X40	64284040	4"	4"	150 PSI

** Denotes parts are produced as welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
