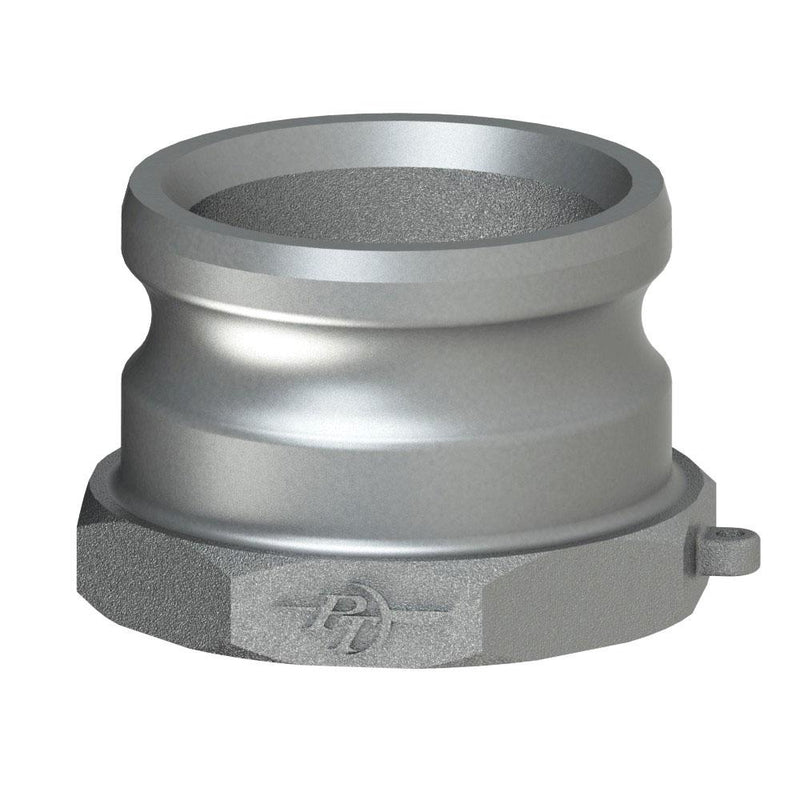

64344000 (40AS) by PT-Coupling | Cam & Groove Adapter | Type AS | 4" Adapter x 4" Female NPSH | 316 Stainless Steel | Buna Fuel Resistant Seal

Save $128.61

$346.45

$346.45 - $346.45

$346.45

$217.84

$217.84 - $217.84

$217.84

PT Coupling
Cam & Groove (Camlock) Adapter | Type AS | Adapter x Female NPSH | 316 Stainless Steel | Buna Fuel Resistant Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 64344000 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type A
Ends Configuration:	4in Male Cam & Groove, 4in Female NPSH
Material(s):	316 Stainless Steel
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
Female straight pipe threads are compatible with male NPSH, NPSM and NPT threads. Comes standard with a Buna Fuel Resistant straight thread gasket. Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA


Part Name	Item #	Adapter Size	Female NPSH Thread	Overall Length (C)	Inside Diameter (E)	Across Corners (F)	Chain Lug Extension (G)	Max. Allowable Working Press. (PSI)*
20AS	64342000	2"	2"	2.54"	1.72"	2.92"	0.31"	250 PSI
30AS	64343000	3"	3"	2.84"	2.80"	4.22"	0.44"	200 PSI
40AS	64344000	4"	4"	3.16"	3.78"	5.41"	0.39"	150 PSI
50AS	64345000	5"	5"	3.22"	4.79"	6.49"	0.35"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
