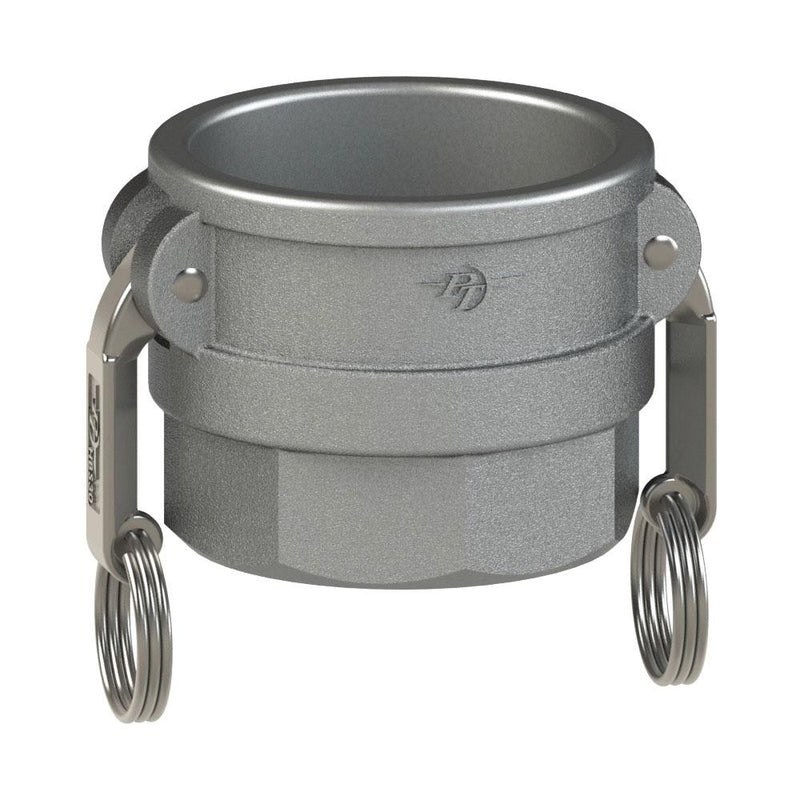

64363000 (30DS) by PT-Coupling | Cam & Groove Adapter | Type DS | 3" Coupler x 3" Female NPSH | 316 Stainless Steel | Buna Fuel Resistant & Buna-N Seals

64363000 (30DS) by PT-Coupling | Cam & Groove Adapter | Type DS | 3" Coupler x 3" Female NPSH | 316 Stainless Steel | Buna Fuel Resistant & Buna-N Seals

Save $164.00 Save $164.00
$441.80
$441.80 - $441.80
$441.80
$277.80
$277.80 - $277.80
$277.80

PT Coupling
Cam & Groove (Camlock) Adapter | Type DS | Coupler x Female NPSH | 316 Stainless Steel | Buna Fuel Resistant & Buna-N Seals

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 64363000 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 3in Female Cam & Groove, 3in Female NPSH
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile
Features & Applications:
  • Female straight pipe threads are compatible with male NPSH, NPSM and NPT threads.
  • Comes standard with a Buna Fuel Resistant straight thread gasket, and Buna-N cam gasket.
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Female NPSH
Thread		 O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Inside
Diameter
(E)		 Max. Allowable
Working Press.
(PSI)*
20DS 64362000 2" 2" 7.54" 3.94" 3.10" 1.88" 250 PSI
25DS 64362500 2-1/2" 2-1/2" 8.03" 4.43" 3.40" 2.38" 200 PSI
30DS 64363000 3" 3" 9.56" 5.46" 3.50" 2.88" 200 PSI
40DS 64364000 4" 4" 10.66" 6.56" 3.90" 3.60" 150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
