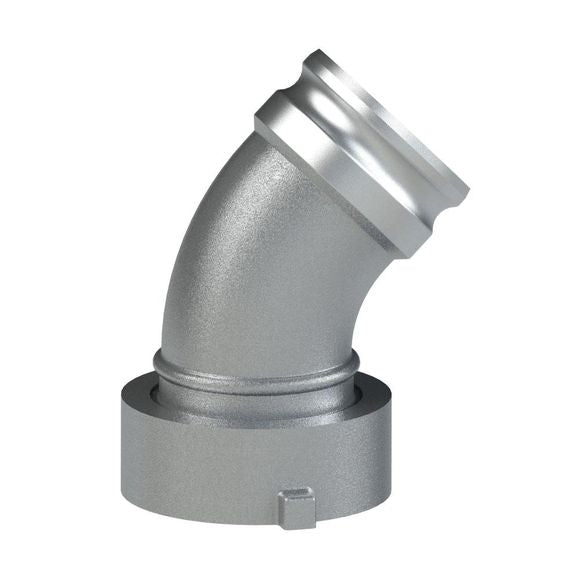

64464000 (TCA40X45DEG) by PT-Coupling | Reducing Cam & Groove Adapter | Type TCA 40X45º | 45º Elbow | 4" Adapter x 5" Female Tank Car Thread | 316 Stainless Steel

64464000 (TCA40X45DEG) by PT-Coupling | Reducing Cam & Groove Adapter | Type TCA 40X45º | 45º Elbow | 4" Adapter x 5" Female Tank Car Thread | 316 Stainless Steel

Save $354.32 Save $354.32
$954.55
$954.55 - $954.55
$954.55
$600.23
$600.23 - $600.23
$600.23

PT Coupling
Cam & Groove (Camlock) Adapter | Type TCA 40X45º | 45º Elbow | Adapter x Female Tank Car Thread | 316 Stainless Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 64464000 PT-Coupling
Shape (Orientation): 45 Degree Elbow
Cam Type: Type A
Ends Configuration: 4in Male Cam & Groove, 5in Female Tank Car Thread
Material(s): 316 Stainless Steel
Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name		 Item # Orientation Adapter
Size		 Female Tank
Car Thread		 Max. Allowable
Working Press.
(PSI)*
TCA40X45DEG 64464000 45° 4" 5" 75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
