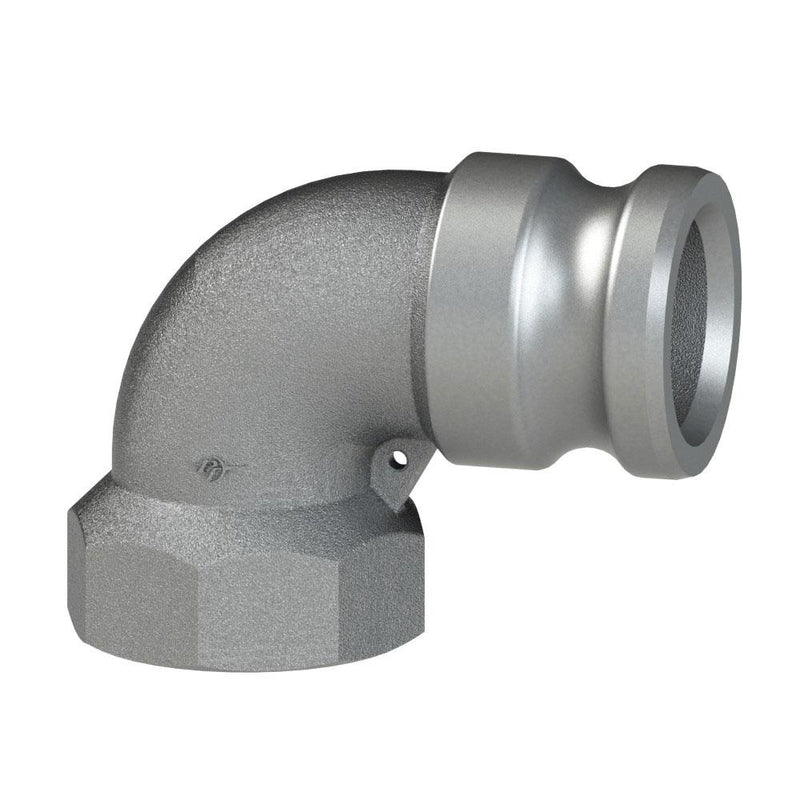

64493000 (30LA) by PT-Coupling | Cam & Groove Adapter | Type LA | 90° Elbow | 3" Adapter x 3" Female NPT | 316 Stainless Steel

Save $306.93

$826.85

$826.85 - $826.85

$826.85

$519.92

$519.92 - $519.92

$519.92

PT Coupling
Cam & Groove (Camlock) Adapter | Type LA | 90° Elbow | Adapter x Female NPT | 316 Stainless Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 64493000 PT-Coupling
Shape (Orientation):	90 Degree Elbow
Cam Type:	Type A
Ends Configuration:	3in Male Cam & Groove, 3in Female NPT
Material(s):	316 Stainless Steel

Features & Applications:
All Stainless Steel castings are 316 Stainless Steel and all components are 300 series Stainless Steel. Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA

Part Name	Item #	Orientation	Adapter Size	Female NPT Size	Max. Allowable Working Press. (PSI)*
30LA	64493000**	90°	3"	3"	200 PSI

** Denotes parts are produced as welded fabrication
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
