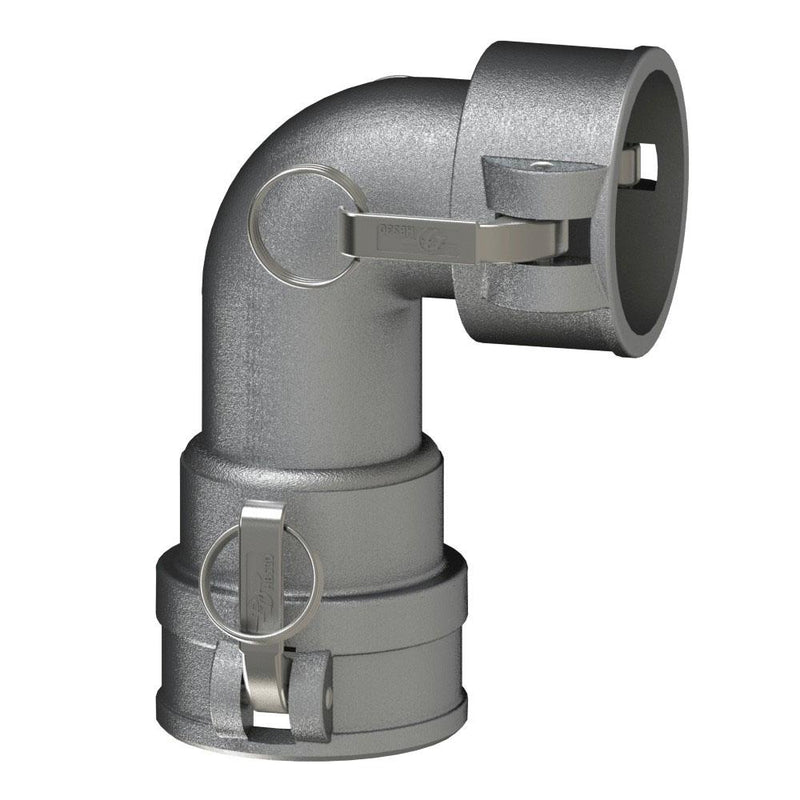

64504240 (40DDL) by PT-Coupling | Cam & Groove Adapter | Type DDL | 90° Elbow | 4" Coupler x 4" Coupler | 316 Stainless Steel | Buna-N Seal

64504240 (40DDL) by PT-Coupling | Cam & Groove Coupler | Type DDL | 90° Elbow | 4" Coupler x 4" Coupler | 316 Stainless Steel | Buna-N Seal

Save $344.15

$927.12

$927.12 - $927.12

$927.12

$582.97

$582.97 - $582.97

$582.97

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 64504240 PT-Coupling
Shape (Orientation):	90 Degree Elbow
Cam Type:	Other
Ends Configuration:	4in Female Cam & Groove, 4in Female Cam & Groove, Some Ends Match
Material(s):	316 Stainless Steel
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA

Part Name	Item #	Orientation	Coupler Size	Coupler Size	Max. Allowable Working Press. (PSI)*
40DDL	64504240	90°	4"	4"	150 PSI

** Denotes parts are produced as welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
