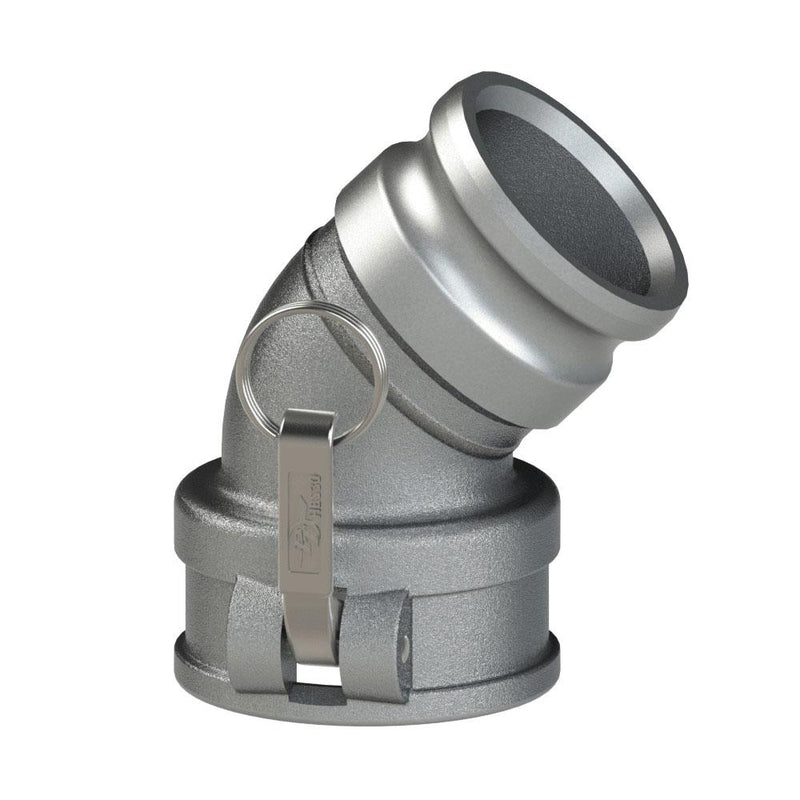

6454426H (60CALHD-45 Deg) by PT-Coupling | Cam & Groove Adapter | Type CAL | 45° Elbow | 6" Coupler x 6" Adapter Heavy Duty | 316 Stainless Steel | Buna-N Seal

6454426H (60CALHD-45 Deg) by PT-Coupling | Cam & Groove Coupler | Type CAL | 45° Elbow | 6" Coupler x 6" Adapter Heavy Duty | 316 Stainless Steel | Buna-N Seal

Save $592.27 Save $592.27
$1,595.52
$1,595.52 - $1,595.52
$1,595.52
$1,003.25
$1,003.25 - $1,003.25
$1,003.25

PT Coupling
Cam & Groove (Camlock) Adapter | Type CAL | 45° Elbow | Coupler x Adapter | 316 Stainless Steel | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 6454426H PT-Coupling
Shape (Orientation): 45 Degree Elbow
Cam Type: Other
Ends Configuration: 6in Female Cam & Groove, 6in Male Cam & Groove
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile
Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name		 Item # Orientation Coupler
Size		 Adapter
Size		 Max. Allowable
Working Press.
(PSI)*
20CAL 64504120** 90° 2" 2" 200 PSI
30CAL 64503130** 90° 3" 3" 200 PSI
40CAL 64504140 90° 4" 4" 150 PSI
40CAL-45 Deg 64504145 45° 4" 4" 150 PSI
60CALHD-45 Deg 6454426H 45° Heavy Duty 6" 6" 75 PSI

** Denotes parts are produced as welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
