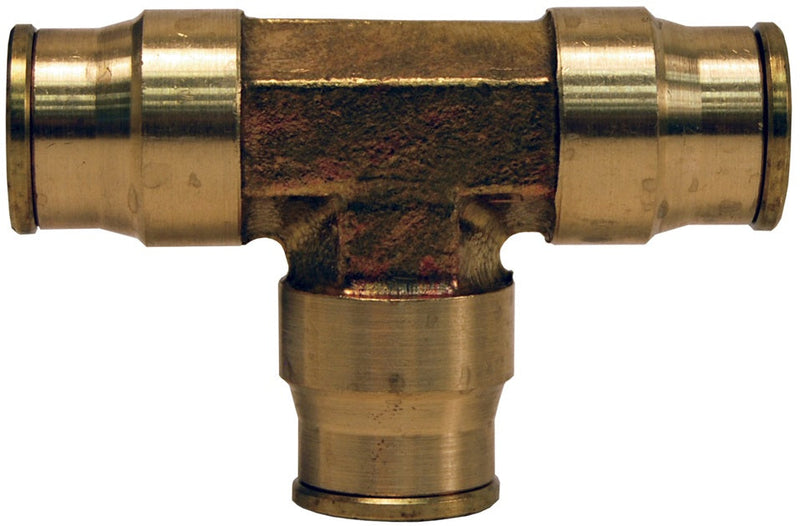

646 by Dixon Valve | Push-In Fitting | Union Tee | 3/16" Tube OD | Forged Brass

Name: 646 by Dixon Valve | Push-In Fitting | Union Tee | 3/16" Tube OD | Forged Brass
Brand: Dixon
SKU: 646 Dixon
Price: 9.4 USD
Availability: InStock

Save $6.27

$15.67

$15.67 - $15.67

$15.67

$9.40

$9.40 - $9.40

$9.40

Dixon Valve & Coupling
Push-In Fitting | Union Tee | Tube End x Tube End x Tube End

Specifications for Variant SKU: 646 Dixon
Shape (Orientation):	Tee
Ends Configuration:	3/16in Push-to-Connect, 3/16in Push-to-Connect, Some Ends Match
Material(s):	Brass

Use:
Suitable for vacuum service. Working pressure: suitable for use up to the maximum working pressure of the plastic tubing used.
Features:
Positive seal: no leaks, after tubing is inserted, seal is made. Secure tube retention: pulling on tubing only serves to tighten the connection. Full flow design provides up to 60% more flow than conventional fittings with internal tube supports. Supplied with gasket.
Construction:
Forged Brass
Specifications:
Temperature range: -10°F to 200°F (-23°C to 93°C)
Safety Notes:
Fittings are suitable for use up to the maximum working pressure of the plastic tubing used.
Installation:
Saves up to 75% of assembly time versus the standard compression fittings. Quick connect: simply push tubing in, no tools required. Quick disconnect: hold two fingers on insert and pull tubing out, no tools required. Reusable: connect and disconnect numerous times.

Part Number	Tube O.D.
644	1/8"
646	3/16"
648	1/4"
6412	3/8"
6416	1/2"
